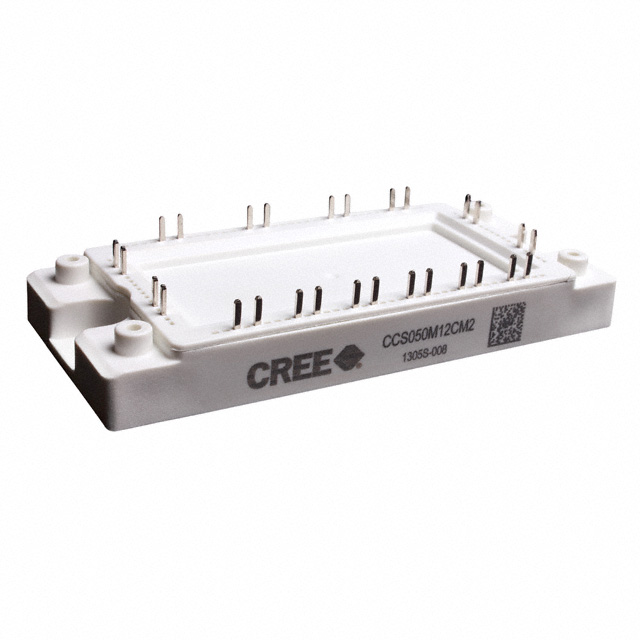

CCS050M12CM2

Manufacturer :

Wolfspeed

Product Category :

Transistors - FETs, MOSFETs - Arrays

Operating Temperature :

150°C TJ

Rds On Max :

34 mΩ

Number of Channels :

6

Input Capacitance (Ciss) (Max) @ Vds :

2.810nF @ 800V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Threshold Voltage :

2.3V

Drain to Source Voltage (Vdss) :

1200V 1.2kV

Radiation Hardening :

No

Reverse Voltage :

1.2kV

Mount :

Chassis Mount, Screw

Drain to Source Resistance :

25mOhm

Drain to Source Breakdown Voltage :

1.2kV

Current - Continuous Drain (Id) @ 25°C :

87A Tc

Max Junction Temperature (Tj) :

150°C

Turn On Delay Time :

21 ns

Rds On (Max) @ Id, Vgs :

34mOhm @ 50A, 20V

Rise Time :

19ns

RoHS Status :

RoHS Compliant

Number of Elements :

6

FET Type :

6 N-Channel (3-Phase Bridge)

Mounting Type :

Chassis Mount

Min Operating Temperature :

-40°C

Fall Time (Typ) :

30 ns

FET Feature :

Silicon Carbide (SiC)

Max Operating Temperature :

150°C

Max Power Dissipation :

337W

Series :

Z-FET™ Z-Rec™

Supplier Device Package :

Module

Turn-Off Delay Time :

50 ns

Gate Charge (Qg) (Max) @ Vgs :

180nC @ 20V

Input Capacitance :

2.81nF

Gate to Source Voltage (Vgs) :

25V

Height :

17.5mm

Factory Lead Time :

19 Weeks

Package / Case :

Module

Vgs(th) (Max) @ Id :

2.3V @ 2.5mA

Continuous Drain Current (ID) :

87A

Power - Max :

337W

REACH SVHC :

Unknown

Packaging :

Bulk

Published :

2013

Power Dissipation :

312W

Number of Pins :

28
