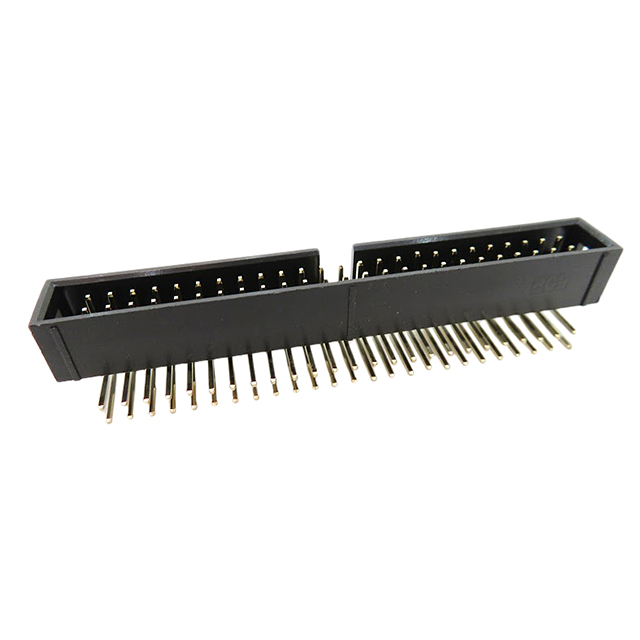

BHR-50-HUA

Manufacturer :

Adam Tech

Product Category :

Headers, Male Pins

Current Rating :

1A

Operating Temperature :

-40°C~105°C

Pitch - Mating :

0.100 2.54mm

Contact Material :

Brass

Factory Lead Time :

9 Weeks

Contact Finish - Mating :

Gold

Reference Standard :

UL, CSA

Rated Current (Signal) :

1A

Reliability :

COMMERCIAL

Insulation Height :

0.356 9.05mm

Dielectric Withstanding Voltage :

1000VAC V

Feature :

Keying Slot

Style :

Board to Board or Cable

Mounting Option 1 :

LOCKING

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Additional Feature :

RoHS Compliant

Polarization Key :

POLARIZED HOUSING

Number of Positions :

50

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Solder

Number of Positions Loaded :

All

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

PCB Contact Pattern :

RECTANGULAR

Body Breadth :

0.356 inch

Body Depth :

0.518 inch

Contact Length - Post :

0.134 3.40mm

Fastening Type :

Push-Pull

Contact Type :

Male Pin

Series :

BHR

Number of Conductors :

ONE

Insulation Color :

Black

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

Flash

Packaging :

Bulk

Mounting Type :

Through Hole, Right Angle

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

250VAC

Row Spacing - Mating :

0.100 (2.54mm)

Shrouding :

Shrouded - 4 Wall

Mating Contact Pitch :

0.1 inch

Length - Termination :

0.134 inch

Number of Rows :

2

Connector Type :

Header

Number Of PCB Rows :

2
