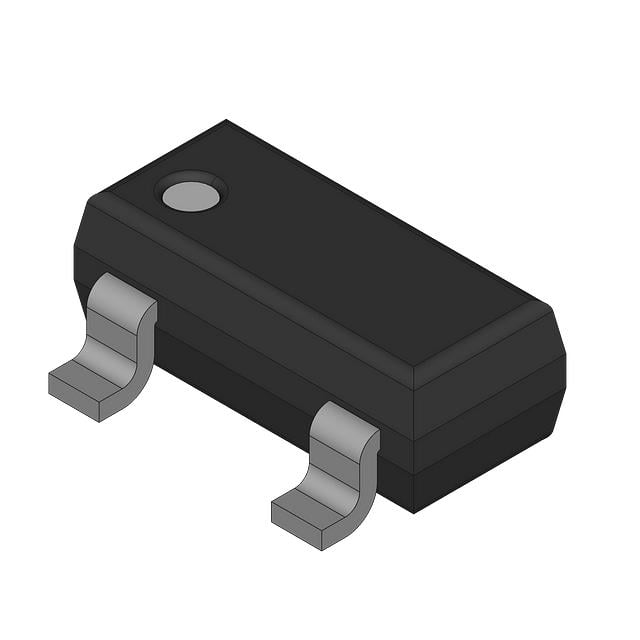

BCX71HE6327
Or copy the link below:
- Mfr.Part #
- BCX71HE6327
- Manufacturer
- Infineon Technologies
- Package / Case
- TO-236-3, SC-59, SOT-23-3
- Datasheet
- Download
- Description
- TRANS PNP 45V 0.1A SOT23
- Stock
- 207,096
- In Stock ：
- 207,096
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Power Dissipation :
- 330mW
- Max Breakdown Voltage :
- 45V
- RoHS Status :
- ROHS3 Compliant
- Max Collector Current :
- 100mA
- Pbfree Code :
- yes
- Current Rating :
- -100mA
- Collector Emitter Voltage (VCEO) :
- 550mV
- Collector Emitter Breakdown Voltage :
- 45V
- Terminal Position :
- Dual
- Number of Pins :
- 3
- Operating Temperature :
- 150°C TJ
- Configuration :
- Single
- Current - Collector Cutoff (Max) :
- 20nA ICBO
- Package / Case :
- TO-236-3, SC-59, SOT-23-3
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 180 @ 2mA 5V
- Transistor Element Material :
- SILICON
- Mounting Type :
- Surface Mount
- Number of Elements :
- 1
- Number of Terminations :
- 3
- Frequency :
- 250MHz
- Transistor Application :
- SWITCHING
- Contact Plating :
- Tin
- Qualification Status :
- Not Qualified
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- ECCN Code :
- EAR99
- Voltage - Rated DC :
- -45V
- Base Part Number :
- BCX71
- Halogen Free :
- Not Halogen Free
- Mount :
- Surface Mount
- Max Power Dissipation :
- 330mW
- Lead Free :
- Lead Free
- Collector Base Voltage (VCBO) :
- 45V
- Published :
- 2006
- Transition Frequency :
- 250MHz
- Polarity/Channel Type :
- PNP
- JESD-609 Code :
- e3
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Transistor Type :
- PNP
- Vce Saturation (Max) @ Ib, Ic :
- 550mV @ 1.25mA, 50mA
- Emitter Base Voltage (VEBO) :
- 5V
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Form :
- Gull wing
- Datasheets
- BCX71HE6327
PNP 150°C TJ 20nA ICBO 1 Elements 3 Terminations SILICON PNP TO-236-3, SC-59, SOT-23-3 Tape & Reel (TR) Surface Mount
BCX71HE6327HTSA1 Overview
This device has a DC current gain of 180 @ 2mA 5V, which is the ratio between the base current and the collector current.A VCE saturation (Max) of 550mV @ 1.25mA, 50mA means Ic has reached its maximum value(saturated).A high level of efficiency can be achieved if the base voltage of the emitter remains at 5V.This device has a current rating of -100mA which corresponds to the maximum current it can carry for an indefinite period without deteriorating too much.As you can see, the part has a transition frequency of 250MHz.A breakdown input voltage of 45V volts can be used.A maximum collector current of 100mA volts is possible.
BCX71HE6327HTSA1 Features
the DC current gain for this device is 180 @ 2mA 5V
the vce saturation(Max) is 550mV @ 1.25mA, 50mA
the emitter base voltage is kept at 5V
the current rating of this device is -100mA
a transition frequency of 250MHz
BCX71HE6327HTSA1 Applications
There are a lot of Infineon Technologies
BCX71HE6327HTSA1 applications of single BJT transistors.
