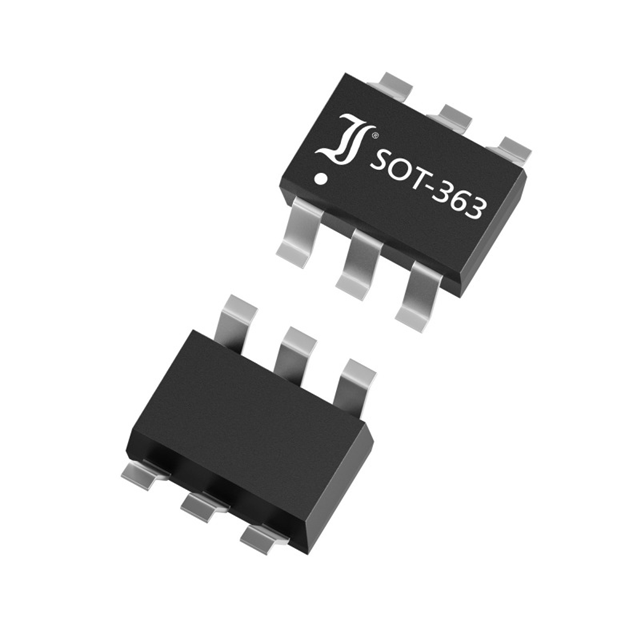

BCM847BS

Manufacturer :

Diotec Semiconductor

Product Category :

Transistors - Bipolar (BJT) - Arrays

Case Connection :

Isolated

Terminal Form :

Gull wing

Power Dissipation :

300mW

Transition Frequency :

250MHz

Current - Collector Cutoff (Max) :

15nA ICBO

Number of Elements :

2

Current - Collector (Ic) (Max) :

100mA

DC Current Gain (hFE) (Min) @ Ic, Vce :

200 @ 2mA 5V

Package / Case :

6-TSSOP, SC-88, SOT-363

Base Part Number :

BCM847

Transistor Type :

2 NPN (Dual) Matched Pair

Frequency - Transition :

250MHz

Voltage - Collector Emitter Breakdown (Max) :

45V

Polarity :

NPN

Mounting Type :

Surface Mount

Published :

2008

Peak Reflow Temperature (Cel) :

260

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

150°C TJ

Packaging :

Tape and Reel (TR)

Vce Saturation (Max) @ Ib, Ic :

400mV @ 5mA, 100mA

Terminal Finish :

Tin (Sn)

Configuration :

SEPARATE, 2 ELEMENTS

Transistor Application :

AMPLIFIER

ECCN Code :

EAR99

Time@Peak Reflow Temperature-Max (s) :

30

Surface Mount :

yes

Transistor Element Material :

SILICON

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

4 Weeks

Number of Pins :

6

Number of Terminations :

6

HTS Code :

8541.21.00.75

JESD-609 Code :

e3

Pin Count :

6
