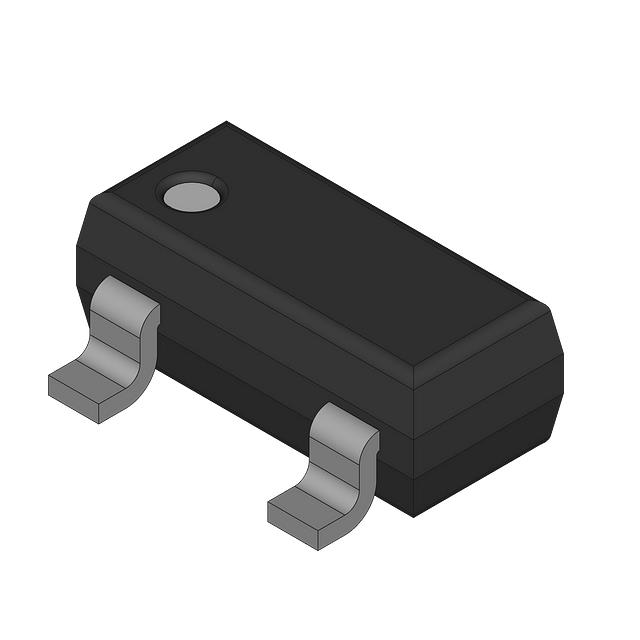

BC80725MTF

Manufacturer :

onsemi

Product Category :

Transistors - Bipolar (BJT) - Single

Lead Free :

Lead Free

Package / Case :

TO-236-3, SC-59, SOT-23-3

Max Breakdown Voltage :

45V

Contact Plating :

Tin

Current :

8A

Mounting Type :

Surface Mount

Vce Saturation (Max) @ Ib, Ic :

700mV @ 50mA, 500mA

Voltage :

45V

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 5 days ago)

Emitter Base Voltage (VEBO) :

5V

Number of Terminations :

3

Number of Pins :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gain Bandwidth Product :

100MHz

Element Configuration :

Single

Pbfree Code :

yes

Number of Elements :

1

Mount :

Surface Mount

Terminal Form :

Gull wing

Collector Emitter Saturation Voltage :

-700mV

Polarity/Channel Type :

PNP

Packaging :

Tape and Reel (TR)

Collector Base Voltage (VCBO) :

-50V

Transistor Application :

SWITCHING

Transition Frequency :

100MHz

Transistor Element Material :

SILICON

Current - Collector Cutoff (Max) :

100nA

Operating Temperature :

150°C TJ

Base Part Number :

BC807

Terminal Position :

Dual

Length :

2.9mm

Collector Emitter Voltage (VCEO) :

45V

RoHS Status :

RoHS Compliant

JESD-609 Code :

e3

DC Current Gain (hFE) (Min) @ Ic, Vce :

160 @ 100mA 1V

Power Dissipation :

310mW

Frequency :

100MHz

ECCN Code :

EAR99

Radiation Hardening :

No

Published :

2002

REACH SVHC :

No SVHC

Max Power Dissipation :

310mW

hFE Min :

100

Factory Lead Time :

13 Weeks

Max Collector Current :

800mA

Width :

1.3mm

Weight :

59.987591mg

Collector Emitter Breakdown Voltage :

45V

Height :

960μm

Transistor Type :

PNP
