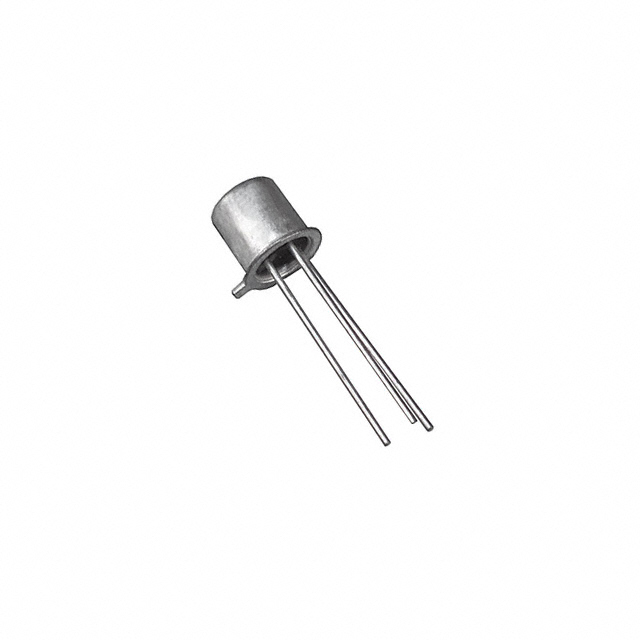

BC394

Manufacturer :

STMicroelectronics

Product Category :

Transistors - Bipolar (BJT) - Single

Pbfree Code :

icon-pbfree no

Power Dissipation-Max (Abs) :

0.4W

Terminal Form :

Wire

Terminal Position :

BOTTOM

Operating Temperature (Max) :

175°C

Reach Compliance Code :

not_compliant

RoHS Status :

Non-RoHS Compliant

Configuration :

Single

DC Current Gain-Min (hFE) :

50

Series :

--

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 10A, 10V

Terminal Finish :

Tin/Lead (Sn/Pb)

Surface Mount :

No

Transition Frequency :

5MHz

Collector Current-Max (IC) :

0.5A

JESD-609 Code :

e0

Mounting Type :

Through Hole

JESD-30 Code :

O-MBCY-W3

Packaging :

Bulk

Turn On Time-Max (ton) :

100ns

Operating Temperature :

--

Current - Collector Cutoff (Max) :

50nA (ICBO)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supplier Device Package :

TO-18

Transistor Type :

NPN

Package / Case :

TO-206AA, TO-18-3 Metal Can

ECCN Code :

EAR99

Number of Elements :

1

Voltage - Collector Emitter Breakdown (Max) :

180V

Frequency - Transition :

5MHz

Transistor Element Material :

SILICON

JEDEC-95 Code :

TO-18

Turn Off Time-Max (toff) :

400ns

Polarity/Channel Type :

NPN

Collector-Emitter Voltage-Max :

180V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Number of Terminals :

3

Transistor Application :

SWITCHING

Vce Saturation (Max) @ Ib, Ic :

--
