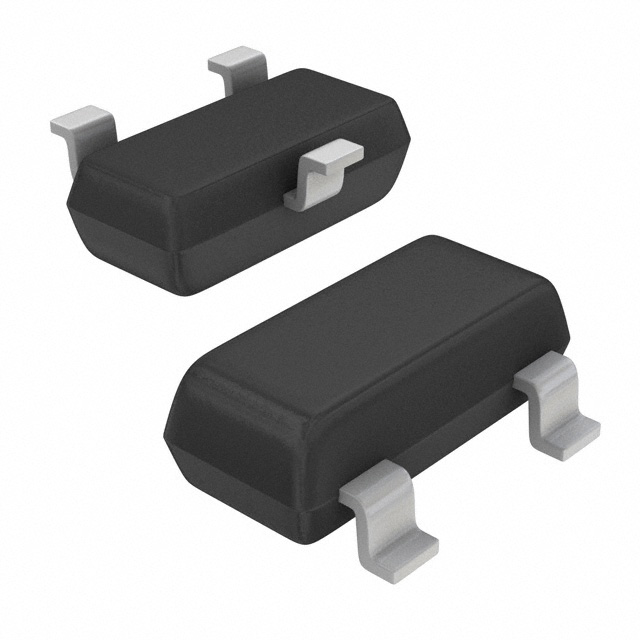

BAV99T116

Manufacturer :

ROHM Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Tolerance :

10%

Width :

787.4μm

Diode Configuration :

1 Pair Series Connection

Terminal Position :

Dual

Peak Reflow Temperature (Cel) :

260

Power Dissipation :

300mW

Lead Free :

Lead Free

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Recovery Time :

4 ns

Max Reverse Voltage (DC) :

75V

Voltage - Rated :

25V

Pbfree Code :

yes

Capacitance :

5.6nF

JESD-609 Code :

e1

Factory Lead Time :

10 Weeks

Additional Feature :

High Reliability

HTS Code :

8541.10.00.70

Packaging :

Tape and Reel (TR)

Reverse Recovery Time :

4 ns

Diode Type :

Standard

Length :

1.6002mm

Current - Reverse Leakage @ Vr :

1μA @ 75V

Peak Non-Repetitive Surge Current :

4A

Published :

2004

Radiation Hardening :

No

Number of Elements :

2

Voltage - Forward (Vf) (Max) @ If :

1.25V @ 150mA

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Time@Peak Reflow Temperature-Max (s) :

10

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

Base Part Number :

BAV99

Average Rectified Current :

215mA

Diode Element Material :

SILICON

Operating Temperature - Junction :

150°C Max

Number of Pins :

3

Forward Current :

450mA

Pin Count :

3

Voltage - Rated DC :

75V

Package / Case :

TO-236-3, SC-59, SOT-23-3

Mounting Type :

Surface Mount

Max Surge Current :

4A

Max Repetitive Reverse Voltage (Vrrm) :

85V

Terminal Form :

Gull wing

Thickness :

889μm

Number of Terminations :

3

ECCN Code :

EAR99

Max Operating Temperature :

125°C

Max Reverse Leakage Current :

1μA

Output Current-Max :

0.215A

Current Rating :

215mA

RoHS Status :

ROHS3 Compliant

Min Operating Temperature :

-55°C
