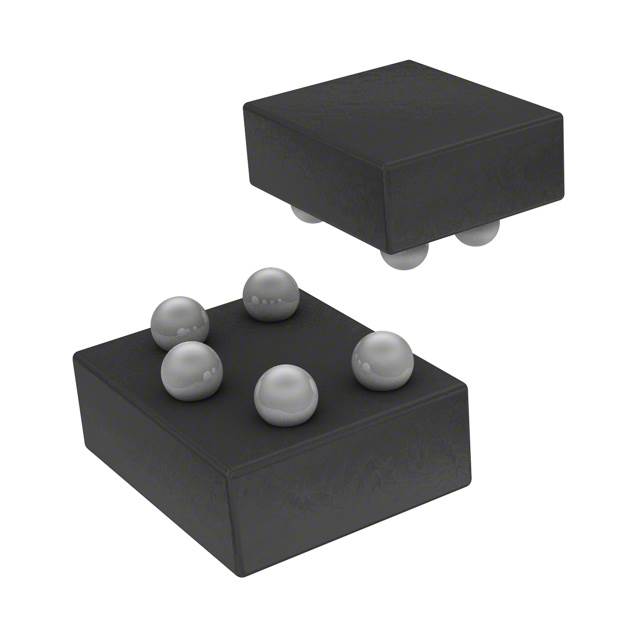

BAL-CW1250D3
Or copy the link below:
- Mfr.Part #
- BAL-CW1250D3
- Manufacturer
- STMicroelectronics
- Package / Case
- 5-UFBGA, FCBGA
- Datasheet
- Download
- Description
- BALUN 2.4GHZ-2.5GHZ 5UFBGA FCBGA
- Stock
- 1,923
- In Stock ：
- 1,923
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Balun
- Packaging :
- Cut Tape (CT)
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- JESD-609 Code :
- e1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Impedance - Unbalanced/Balanced :
- 50 / -Ohm
- Bandwidth :
- 2.5 GHz
- Number of Pins :
- 5
- Return Loss-Min :
- 21dB
- Transformer Type :
- RF TRANSFORMER
- Mount :
- Surface Mount
- Frequency Range :
- 2.4GHz~2.5GHz
- Frequency :
- 2.5GHz
- Termination :
- Solder
- ECCN Code :
- EAR99
- Insertion Loss (dB) :
- 0.97 dB
- Min Operating Temperature :
- -30°C
- Phase Difference :
- 10°
- Max Operating Temperature :
- 85°C
- Package / Case :
- 5-UFBGA, FCBGA
- Length :
- 1.2mm
- Mounting Type :
- Surface Mount
- Impedance :
- 50Ohm
- Radiation Hardening :
- No
- Datasheets
- BAL-CW1250D3
BAL-CW1250D3 Documents
BAL-CW1250D3 datasheet pdf and Balun product details from STMicroelectronics stock available at
