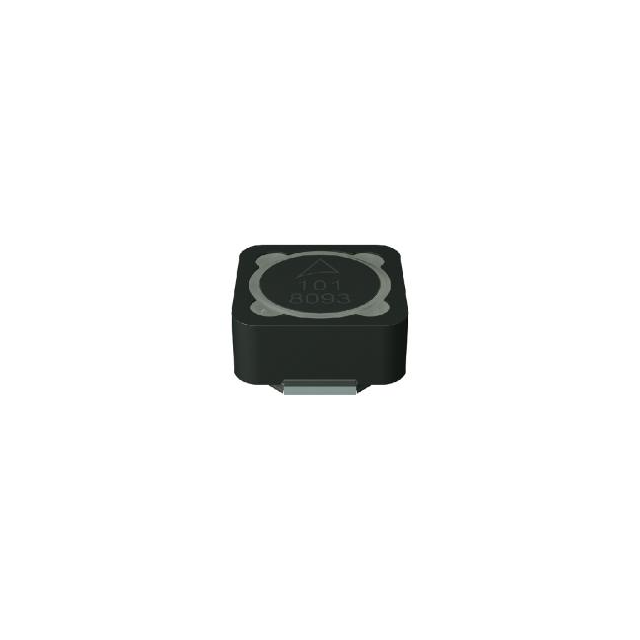

B82477P2154M000

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Shielding :

Shielded

Series :

B82477P4

Case/Size Code :

4949

Surface Mount :

yes

Inductance-Nom (L) :

150 µH

Number of Terminations :

2

Pbfree Code :

yes

Inductance :

150 µH

Tolerance :

20%

Lifecycle Status :

Production (Last Updated: 1 month ago)

Inductor Type :

GENERAL PURPOSE INDUCTOR

DC Resistance (DCR) - Parallel :

210mOhm

ECCN Code :

EAR99

Material - Core :

Ferrite

JESD-609 Code :

e3

HTS Code :

8504.50.80.00

Packing Method :

Blister Pack

Resistance :

210mOhm

Terminal Placement :

DUAL ENDED

Test Frequency :

100kHz

RoHS Status :

RoHS Compliant

Operating Temperature (Max) :

150°C

Operating Temperature (Min) :

-55°C

Shape/Size Description :

RECTANGULAR PACKAGE

Military Standard :

Not

Number of Functions :

1

Depth :

12.5mm

Length :

12.5mm

Terminal Shape :

WRAPAROUND

DC Current :

1.35A

Inductor Application :

POWER INDUCTOR

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Reference Standard :

AEC-Q200
