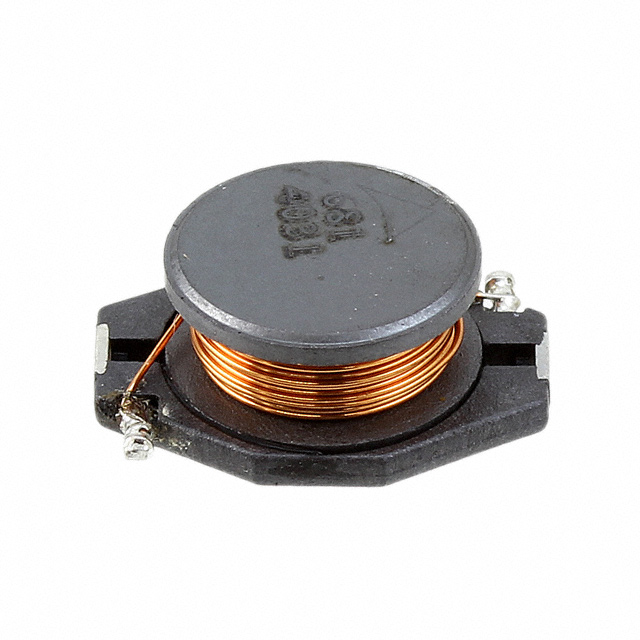

B82476B1684M100

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Lifecycle Status :

Production (Last Updated: 2 months ago)

ECCN Code :

EAR99

Number of Functions :

1

Q @ Freq :

--

Tolerance :

20%

Max Operating Temperature :

150°C

Reach Compliance Code :

Unknown

Operating Temperature :

-55°C ~ 150°C

Material - Core :

Ferrite

Supplier Device Package :

--

Packing Method :

TR, BLISTER, 13 INCH

Inductor Type :

GENERAL PURPOSE INDUCTOR

Case/Size Code :

5137

Frequency - Self Resonant :

--

Inductor Application :

POWER INDUCTOR

Inductance Frequency - Test :

100kHz

Inductance :

680 µH

Inductance Tolerance :

20%

Depth :

9.4mm

Size / Dimension :

0.510 L x 0.370 W (12.95mm x 9.40mm)

Package / Case :

Nonstandard

Length :

12.954mm

Terminal Placement :

DUAL ENDED

Mounting Type :

Surface Mount

Shielding :

Unshielded

Military Standard :

Not

Ratings :

AEC-Q200

Construction :

RECTANGULAR

RoHS Status :

RoHS Compliant

Packaging :

Cut Tape

DC Resistance (DCR) - Parallel :

1.6Ohm

Composition :

Wirewound

Height - Seated (Max) :

0.200 (5.08mm)

Current - Saturation :

400mA

REACH SVHC :

No SVHC

HTS Code :

8504.50.80.00

Type :

Wirewound

Height Seated (Max) :

5.08mm

Test Frequency :

100kHz

DC Resistance (DCR) :

1.6 Ohm Max

Min Operating Temperature :

-55°C

Series :

B82476B1

RMS Current (Irms) :

430mA

Current Rating :

430mA

Shape/Size Description :

RECTANGULAR PACKAGE

Number of Terminations :

2

Terminal Shape :

ONE SURFACE

Max DC Current :

430mA

Width :

9.398mm

Mount :

Surface Mount

DC Current :

430mA

Inductance-Nom (L) :

680 µH
