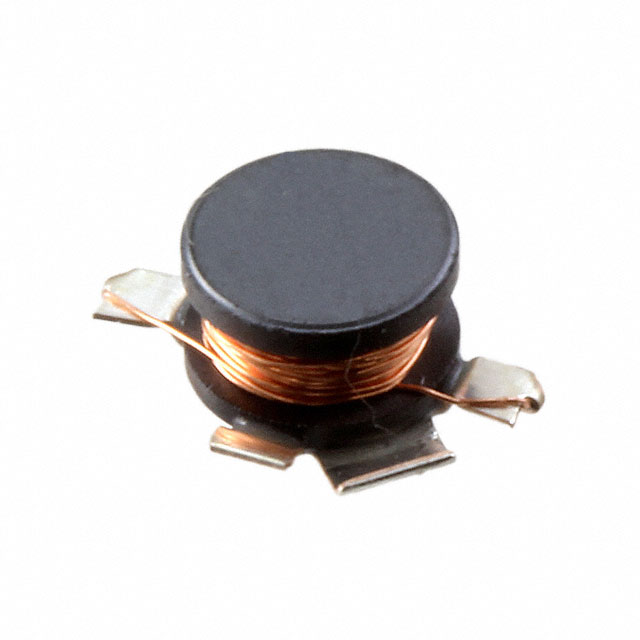

B82462A4334K000

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Number of Functions :

1

REACH SVHC :

No SVHC

Operating Temperature (Max) :

150°C

Pbfree Code :

yes

Inductance :

330 µH

Frequency - Self Resonant :

5MHz

Inductance Tolerance :

10%

Number of Pins :

2

Packing Method :

TR, BLISTER, 13 INCH

Inductor Application :

POWER INDUCTOR

Inductance-Nom (L) :

330 µH

Lead Free :

Lead Free

Test Frequency :

100kHz

Surface Mount :

yes

Shape/Size Description :

RECTANGULAR PACKAGE

ECCN Code :

EAR99

Terminal Shape :

L BEND

Tolerance :

10%

Shielding :

Unshielded

HTS Code :

8504.50.80.00

Resistance :

3.9Ohm

JESD-609 Code :

e2

Depth :

6mm

Number of Terminations :

2

Terminal Placement :

DUAL ENDED

Inductor Type :

GENERAL PURPOSE INDUCTOR

DC Current :

200mA

Current Rating :

220mA

RoHS Status :

RoHS Compliant

Terminal Finish :

Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

Width :

6mm

Lifecycle Status :

Production (Last Updated: 2 months ago)

Operating Temperature (Min) :

-55°C

DC Resistance (DCR) - Parallel :

3.9Ohm

Material - Core :

Ferrite

Packaging :

Cut Tape

Length :

6.2mm

Construction :

RECTANGULAR

Military Standard :

Not
