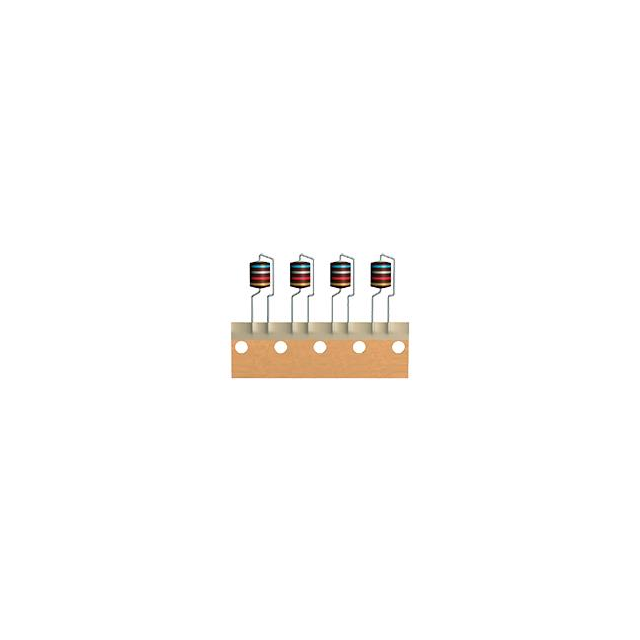

B82144B1102K000

Manufacturer :

EPCOS (TDK)

Product Category :

Fixed Inductors

Lead Diameter :

0.8 mm

Inductor Type :

GENERAL PURPOSE INDUCTOR

Tolerance :

10%

Material - Core :

Ferrite

Operating Temperature (Min) :

-55°C

Quality Factor-Min (at L-nom) :

25

Inductance Tolerance :

10%

RoHS Status :

RoHS Compliant

Q Factor :

25

Lifecycle Status :

Production (Last Updated: 2 months ago)

Max DC Current :

2.5A

Number of Pins :

2

Terminal Shape :

Wire

Lead/Base Style :

Radial

Shape/Size Description :

TUBULAR PACKAGE

Military Standard :

Not

Inductor Application :

POWER INDUCTOR

Frequency - Self Resonant :

200MHz

Surface Mount :

No

Number of Functions :

1

Resistance :

60mOhm

Pbfree Code :

yes

Inductance-Nom (L) :

1 µH

Packing Method :

TR, 14 INCH

ECCN Code :

EAR99

REACH SVHC :

No SVHC

Current Rating :

2.5A

Inductance :

1 µH

HTS Code :

8504.50.80.00

Number of Terminations :

2

Construction :

Tubular

Shielding :

No

DC Resistance (DCR) - Parallel :

60mOhm

Terminal Finish :

Tin (Sn)

JESD-609 Code :

e3

Lead Pitch :

5mm

Packaging :

Tape and Reel

Test Frequency :

7.96MHz

DC Current :

2.5A
