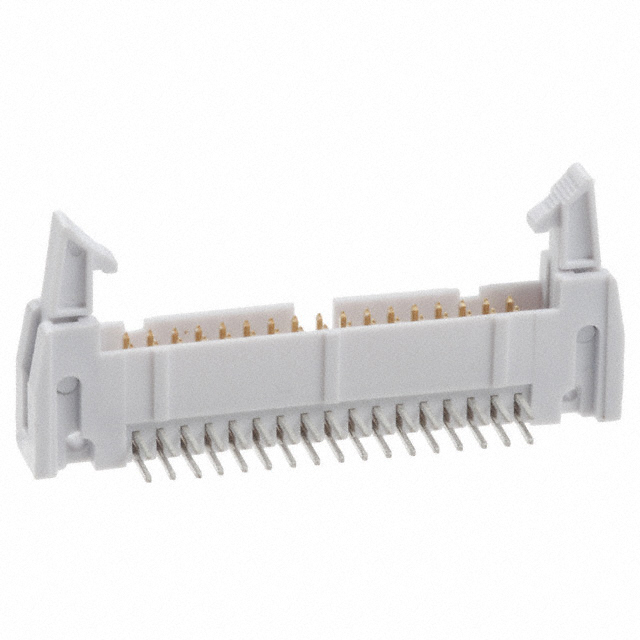

AWH34A-0232-T-R
Or copy the link below:
- Mfr.Part #
- AWH34A-0232-T-R
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 34POS 2.54MM
- Stock
- 22,339
- In Stock ：
- 22,339
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Row Spacing - Mating :
- 0.100 (2.54mm)
- PCB Contact Pattern :
- RECTANGULAR
- Insulation Height :
- 0.669 17.00mm
- Reliability :
- COMMERCIAL
- Housing Color :
- Grey
- Height :
- 8.2mm
- Insulation Resistance :
- 5000000000Ohm
- Length :
- 62.4mm
- Contact Type :
- Male Pin
- RoHS Status :
- RoHS Compliant
- Insulation Color :
- Gray
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.100 2.54mm
- Number of Contacts :
- 34
- Feature :
- Keying Slot
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Connector Type :
- Header
- Mating Contact Pitch :
- 0.1 inch
- Contact Finish - Post :
- Tin
- Dielectric Withstanding Voltage :
- 1000VAC V
- Plating Thickness :
- 30μin
- Mounting Option 2 :
- LOCKING
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- Flash
- Width :
- 16.9mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number Of PCB Rows :
- 2
- Polarization Key :
- POLARIZED HOUSING
- Housing Material :
- Plastic
- Published :
- 2005
- Style :
- Board to Cable/Wire
- Body Depth :
- 0.663 inch
- Contact Shape :
- Square
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Reference Standard :
- UL
- Mounting Type :
- Through Hole, Right Angle
- Number of Conductors :
- ONE
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Current Rating (Amps) :
- 3A
- Contact Length - Post :
- 0.150 3.81mm
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~105°C
- Datasheets
- AWH34A-0232-T-R
2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.669 17.00mm Height
AWH34A-0232-T-R Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There are a number of advantages to its Keying Slot feature.As a result, the device runs at -40°C~105°C Operating Temperature.
AWH34A-0232-T-R Features
AWH34A-0232-T-R Applications
There are a lot of Assmann WSW Components
AWH34A-0232-T-R Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
