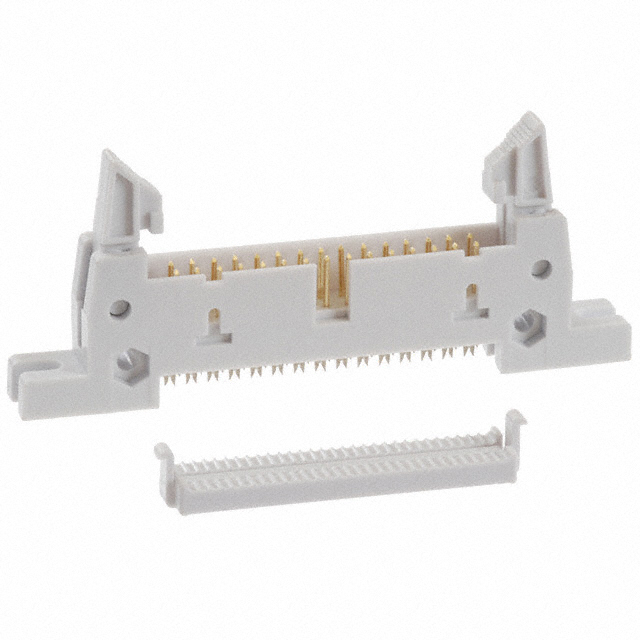

AWH30G-E222-IDC-R
Or copy the link below:
- Mfr.Part #
- AWH30G-E222-IDC-R
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 30POS IDC GOLD
- Stock
- 6,419
- In Stock ：
- 6,419
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- Free Hanging, Panel Mount
- Width :
- 8.2mm
- Contact Material :
- Brass
- Mount :
- Panel
- Dielectric Withstanding Voltage :
- 1000VAC V
- Total Number of Contacts :
- 30
- Number of Positions :
- 30
- Termination Type :
- IDC
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Housing Color :
- Grey
- Published :
- 2006
- Height :
- 19.1mm
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Pitch :
- 0.100 2.54mm
- Reliability :
- COMMERCIAL
- RoHS Status :
- RoHS Compliant
- Cable Termination :
- IDC
- Operating Temperature (Max) :
- 105°C
- Color :
- Gray
- Row Spacing :
- 0.100 (2.54mm)
- Body Depth :
- 0.756 inch
- Housing Material :
- Plastic
- Length :
- 72.7mm
- Number of Rows :
- 2
- Plating Thickness :
- 100μin
- Connector Type :
- Header
- Wire Type :
- Ribbon Cable
- Rated Current (Signal) :
- 3A
- Contact Type :
- Male Pin
- Feature :
- Feed Through
- Wire/Cable Type :
- Ribbon
- Lead Free :
- Lead Free
- Operating Temperature (Min) :
- -40°C
- Mounting Type :
- Panel Mount
- Contact Design :
- PREASSEM CONN
- Contact Finish :
- Gold
- Pbfree Code :
- yes
- Polarization Key :
- POLARIZED HOUSING
- Packaging :
- Tray
- Datasheets
- AWH30G-E222-IDC-R
