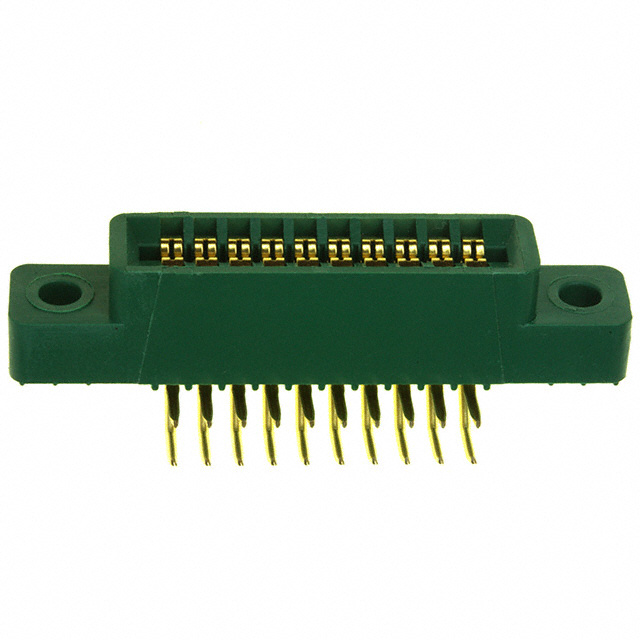

ASC10DRAH
Or copy the link below:
- Mfr.Part #
- ASC10DRAH
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 20POS 0.100
- Stock
- 43,592
- In Stock ：
- 43,592
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Operating Temperature :
- -65°C~150°C
- Card Thickness :
- 0.062 1.57mm
- Insulation Resistance :
- 5000000000Ohm
- Insertion Force-Max :
- 4.448 N
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- JESD-609 Code :
- e4
- ECCN Code :
- EAR99
- Number of Rows :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Connector Type :
- Full Bellows
- Body/Shell Style :
- Receptacle
- Body Depth :
- 0.637 inch
- Pbfree Code :
- yes
- Total Number of Contacts :
- 20
- Additional Feature :
- NONE
- Body Length or Diameter :
- 1.875 inch
- Contact Finish :
- Gold
- Factory Lead Time :
- 3 Weeks
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- HTS Code :
- 8536.69.40.40
- Lead Free :
- Lead Free
- Body Breadth :
- 0.33 inch
- Dielectric Withstanding Voltage :
- 600VDC V
- Rated Current (Signal) :
- 3A
- Number of Positions/Bay/Row :
- 10
- Number Of PCB Rows :
- 2
- Number of Positions :
- 20
- Contact Material :
- BERYLLIUM COPPER
- Read Out :
- Dual
- Number of Conductors :
- ONE
- Card Type :
- Non Specified - Dual Edge
- Contact Type :
- Full Bellows
- Published :
- 2016
- PCB Contact Pattern :
- RECTANGULAR
- Color :
- Green
- Mount :
- Through Hole
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Termination :
- Solder
- Packaging :
- Tube
- Pitch :
- 0.100 2.54mm
- Reliability :
- COMMERCIAL
- Datasheets
- ASC10DRAH
