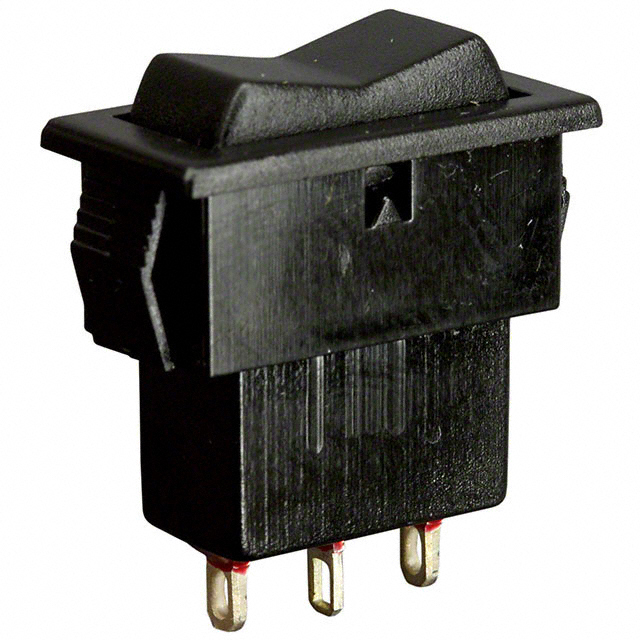

AS37S010010

Manufacturer :

APEM Inc.

Product Category :

Switch Type :

ROCKER SWITCH

Termination :

Solder

Illumination Type :

Illuminated

Operating Temperature :

-40°C~85°C

Actuator Type :

Concave (Standard V)

Contact (AC) Max Rating R Load :

4A@125VAC

Approval Agency :

CSA, UL

Contact Current Rating :

4A

Lead Free :

Lead Free

Height :

18.9mm

Termination Style :

Solder Lug

Packaging :

Bulk

Voltage - Rated AC :

125V

RoHS Status :

ROHS3 Compliant

Contact Plating :

Gold

Switch Function :

Mom-Off-Mom

Sealing :

EPOXY TERMINAL SEALED

Width :

19.6mm

REACH SVHC :

No SVHC

Current Rating :

4A

Contact Current(AC)-Max :

4A

Body Breadth :

6.8 mm

Contact Resistance :

10MOhm

HTS Code :

8536.50.90.40

Feature :

Epoxy Sealed Terminals

Actuator Material :

Polyamide

Body Length or Diameter :

13.2mm

Color - Actuator/Cap :

Black

Factory Lead Time :

13 Weeks

Mounting Type :

Panel Mount, Snap-In

JESD-609 Code :

e4

Contact Material :

Silver

Mount :

Panel, Snap in

Panel Cutout Dimensions :

Rectangular - 18.65mm x 8.90mm

Electrical Life :

50,000 Cycles

Current Rating (Amps) :

4A AC

Pbfree Code :

yes

ECCN Code :

EAR99

Series :

AS

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (AC) :

250V

Circuit :

SPDT

Actuator Marking :

No Marking
