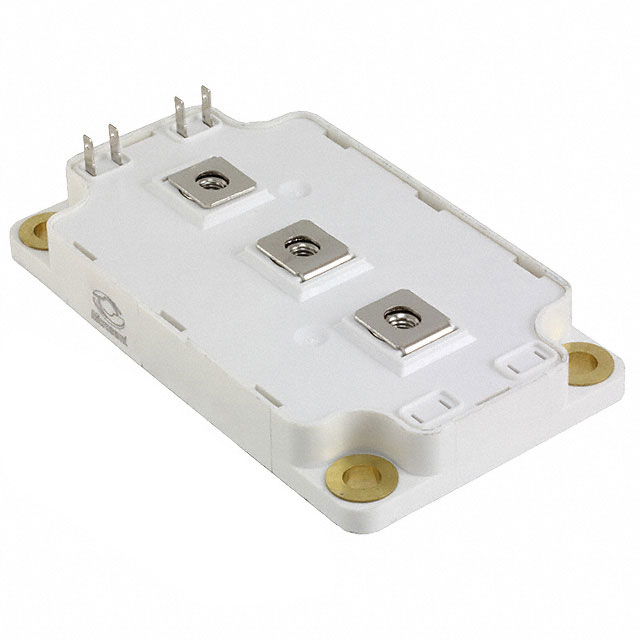

APTGF350DU60G

Manufacturer :

Microsemi

Product Category :

Transistors - IGBTs - Modules

Pbfree Code :

yes

Number of Terminations :

7

Terminal Position :

UPPER

Max Power Dissipation :

1.562kW

RoHS Status :

RoHS Compliant

Gate-Emitter Voltage-Max :

20V

Configuration :

Dual, Common Source

Max Operating Temperature :

150°C

Element Configuration :

Dual

Collector Emitter Voltage (VCEO) :

600V

Vce(on) (Max) @ Vge, Ic :

2.5V @ 15V, 360A

Mounting Type :

Chassis Mount

Package / Case :

SP6

Min Operating Temperature :

-40°C

Transistor Application :

POWER CONTROL

Number of Pins :

7

ECCN Code :

EAR99

Mount :

Chassis Mount, Screw

Current - Collector Cutoff (Max) :

200μA

VCEsat-Max :

2.5 V

Polarity/Channel Type :

N-Channel

Case Connection :

Isolated

Turn Off Time-Nom (toff) :

210 ns

Power - Max :

1562W

JESD-609 Code :

e1

Number of Elements :

2

Terminal Form :

UNSPECIFIED

Max Collector Current :

430A

Input :

Standard

NTC Thermistor :

No

Input Capacitance :

17.2nF

Pin Count :

7

Published :

2012

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Finish :

TIN SILVER COPPER

Collector Emitter Breakdown Voltage :

600V

IGBT Type :

NPT

Input Capacitance (Cies) @ Vce :

17.2nF @ 25V

Turn On Time :

51 ns
