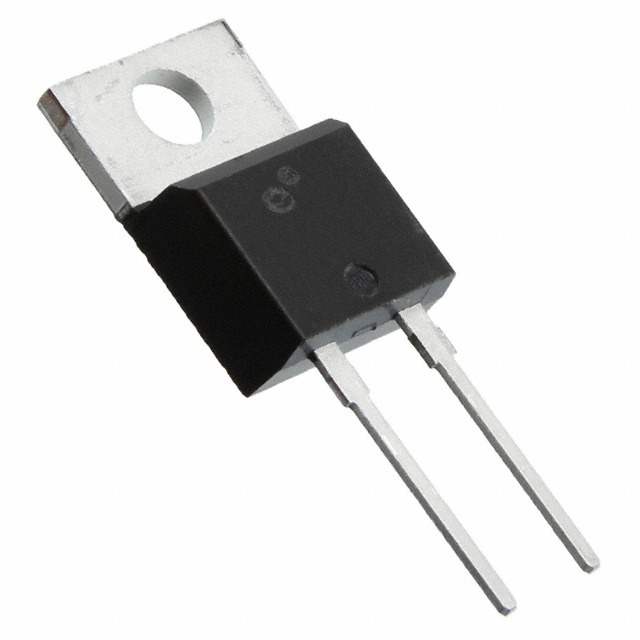

APT10SCD65K

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Factory Lead Time :

22 Weeks

Number of Terminations :

2

Number of Phases :

1

Current - Reverse Leakage @ Vr :

200μA @ 650V

Operating Temperature - Junction :

-55°C~150°C

Additional Feature :

HIGH RELIABILITY, LOW LEAKAGE CURRENT, PD-CASE

Operating Temperature (Max) :

150°C

Application :

GENERAL PURPOSE

Capacitance @ Vr, F :

300pF @ 1V 1MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Non-rep Pk Forward Current-Max :

110A

Diode Type :

Silicon Carbide Schottky

Max Reverse Voltage (DC) :

650V

Voltage - Forward (Vf) (Max) @ If :

1.8V @ 10A

Power Dissipation-Max :

63W

Voltage - DC Reverse (Vr) (Max) :

650V

Average Rectified Current :

17A

ECCN Code :

EAR99

Mounting Type :

Through Hole

Case Connection :

CATHODE

Mount :

Through Hole

JESD-30 Code :

R-PSFM-T2

Speed :

No Recovery Time > 500mA (Io)

JEDEC-95 Code :

TO-220AC

Package / Case :

TO-220-2

RoHS Status :

RoHS Compliant

Reverse Recovery Time :

0 s

Lead Free :

Lead Free

Configuration :

Single

Reverse Current-Max :

200μA

Published :

1999

Packaging :

Bulk

Terminal Position :

Single

Number of Elements :

1

HTS Code :

8541.10.00.80
