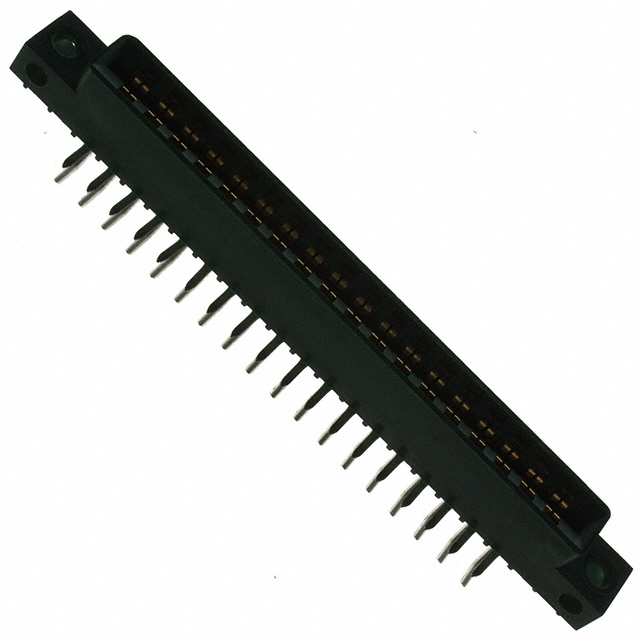

ACM18DRAS
Or copy the link below:
- Mfr.Part #
- ACM18DRAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 36POS 0.156
- Stock
- 30,362
- In Stock ：
- 30,362
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- FEMALE
- JESD-609 Code :
- e3
- Pitch :
- 0.156 3.96mm
- Rated Current (Signal) :
- 3A
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Operating Temperature :
- -65°C~150°C
- Mount :
- Through Hole
- Contact Finish :
- Gold
- Total Number of Contacts :
- 36
- Pbfree Code :
- yes
- Termination :
- Solder
- Color :
- Green
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 3 Weeks
- Card Type :
- Non Specified - Dual Edge
- Number of Positions :
- 36
- Published :
- 2005
- Card Thickness :
- 0.062 1.57mm
- Contact Material :
- BERYLLIUM COPPER
- Packaging :
- Tray
- PCB Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole, Right Angle
- Reliability :
- COMMERCIAL
- Number of Positions/Bay/Row :
- 18
- Lead Free :
- Lead Free
- Body Depth :
- 0.431 inch
- Connector Type :
- Full Bellows
- Body Length or Diameter :
- 3.774 inch
- Number Of PCB Rows :
- 2
- Plating Thickness :
- 30μin
- Number of Conductors :
- ONE
- Number of Rows :
- 2
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Read Out :
- Dual
- Contact Type :
- Full Bellows
- Datasheets
- ACM18DRAS
ACM18DRAS Documents
Female Green 0.156 3.96mm Beryllium Copper 2 Rows Tray Solder Gold 36 Positions Polyphenylene Sulfide (PPS)
ACM18DRAS Overview
Materials were packaged in accordance with Tray's specifications.The mounting type Through Hole, Right Angle is recommended.Devices are connected to the computer using the connector socket Full Bellows.
ACM18DRAS Features
ACM18DRAS Applications
There are a lot of Sullins Connector Solutions
ACM18DRAS Edgeboard Connectors applications.
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
- Handheld Terminal Interface
