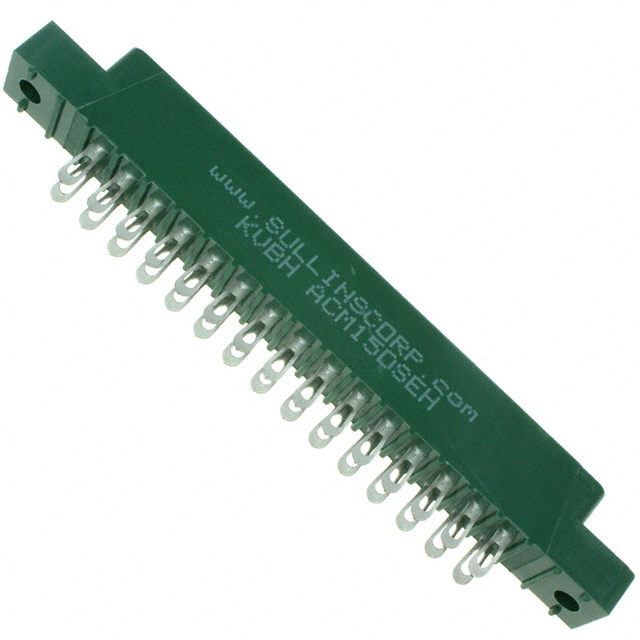

ACM15DSEH
Or copy the link below:
- Mfr.Part #
- ACM15DSEH
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.156
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Gender :
- FEMALE
- Packaging :
- Tray
- Number of Positions :
- 30
- Operating Temperature :
- -65°C~150°C
- Color :
- Green
- Connector Type :
- Full Bellows
- Factory Lead Time :
- 3 Weeks
- Contact Finish :
- Gold
- Termination :
- Solder Eyelet(s)
- Total Number of Contacts :
- 30
- Current Rating :
- 3A
- JESD-609 Code :
- e3
- Number of Rows :
- 2
- Number of Positions/Bay/Row :
- 15
- Pitch :
- 0.156 3.96mm
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Pbfree Code :
- yes
- Card Type :
- Non Specified - Dual Edge
- Body Depth :
- 0.431 inch
- Height :
- 11.08mm
- Card Thickness :
- 0.062 1.57mm
- Contact Material :
- BERYLLIUM COPPER
- Read Out :
- Dual
- Rated Current (Signal) :
- 3A
- Contact Type :
- Full Bellows
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Mounting Type :
- Panel Mount
- Lead Free :
- Lead Free
- RoHS Status :
- ROHS3 Compliant
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Mount :
- Panel
- Published :
- 2005
- Voltage - Rated :
- 950V
- Datasheets
- ACM15DSEH
