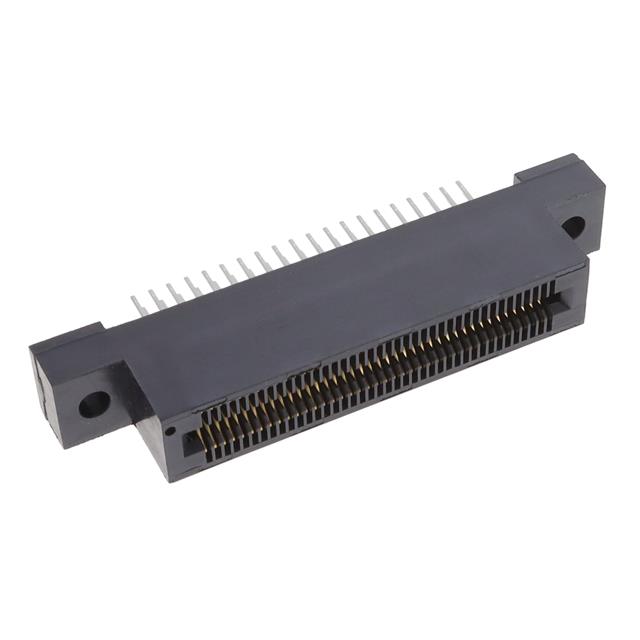

ACE40DHHD
Or copy the link below:
- Mfr.Part #
- ACE40DHHD
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.039
- Stock
- 17,407
- In Stock ：
- 17,407
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Reliability :
- COMMERCIAL
- Read Out :
- Dual
- Termination :
- Solder, Staggered
- Total Number of Contacts :
- 80
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Number of Positions/Bay/Row :
- 40
- Mounting Type :
- Through Hole
- Card Thickness :
- 0.062 1.57mm
- Body Depth :
- 0.61 inch
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.125 (3.18mm) Dia
- Rated Current (Signal) :
- 1A
- Plating Thickness :
- 30μin
- Contact Finish :
- Gold
- Card Type :
- Non Specified - Dual Edge
- Number Of PCB Rows :
- 4
- JESD-609 Code :
- e3
- Number of Positions :
- 80
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Reference Standard :
- UL
- Number of Rows :
- 2
- Packaging :
- Tube
- Operating Temperature :
- -65°C~150°C
- Mount :
- Through Hole
- Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Body Breadth :
- 0.37 inch
- Contact Type :
- Hairpin Bellows
- Contact Material :
- BERYLLIUM COPPER
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Gender :
- FEMALE
- Pitch :
- 0.039 1.00mm
- Number of Conductors :
- ONE
- Connector Type :
- Hairpin Bellows
- Published :
- 2016
- Factory Lead Time :
- 3 Weeks
- Lead Free :
- Lead Free
- Datasheets
- ACE40DHHD
ACE40DHHD Documents
Female Black 0.039 1.00mm Beryllium Copper 2 Rows Tube Solder, Staggered Gold 80 Positions Polyphenylene Sulfide (PPS)
ACE40DHHD Overview
The material was packaged according to the specifications provided by Tube.You should mount it type Through Hole.Connecting the device uses connector socket Hairpin Bellows.
ACE40DHHD Features
ACE40DHHD Applications
There are a lot of Sullins Connector Solutions
ACE40DHHD Edgeboard Connectors applications.
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
