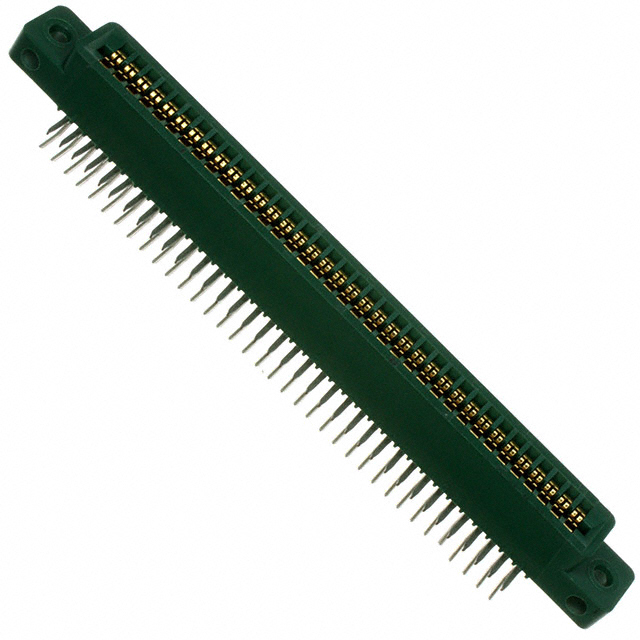

ACC36DRAS
Or copy the link below:
- Mfr.Part #
- ACC36DRAS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 72POS 0.100
- Stock
- 42,486
- In Stock ：
- 42,486
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Factory Lead Time :
- 3 Weeks
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Card Thickness :
- 0.062 1.57mm
- Body Breadth :
- 0.4 inch
- Plating Thickness :
- 10μin
- Pitch :
- 0.100 2.54mm
- RoHS Status :
- ROHS3 Compliant
- Number of Positions/Bay/Row :
- 36
- Packaging :
- Tray
- Termination :
- Solder
- Number Of PCB Rows :
- 2
- Gender :
- FEMALE
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Total Number of Contacts :
- 72
- Color :
- Green
- Read Out :
- Dual
- Contact Material :
- BERYLLIUM COPPER
- Body Length or Diameter :
- 4.475 inch
- Contact Type :
- Full Bellows
- JESD-609 Code :
- e3
- Contact Resistance :
- 30mOhm
- Rated Current (Signal) :
- 3A
- Published :
- 2005
- Connector Type :
- Full Bellows
- Mounting Type :
- Through Hole, Right Angle
- Number of Rows :
- 2
- Card Type :
- Non Specified - Dual Edge
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Body Depth :
- 0.637 inch
- Contact Finish :
- Gold
- Pbfree Code :
- yes
- Number of Positions :
- 72
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -65°C~150°C
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Number of Conductors :
- ONE
- PCB Contact Pattern :
- RECTANGULAR
- Datasheets
- ACC36DRAS
Female Green 0.100 2.54mm Beryllium Copper 2 Rows Tray Solder Gold 72 Positions Polyphenylene Sulfide (PPS)
ACC36DRAS Overview
Material was packaged according to Tray's specifications.It's best to mount type Through Hole, Right Angle.Devices are connected through connector sockets Full Bellows.
ACC36DRAS Features
ACC36DRAS Applications
There are a lot of Sullins Connector Solutions
ACC36DRAS Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
