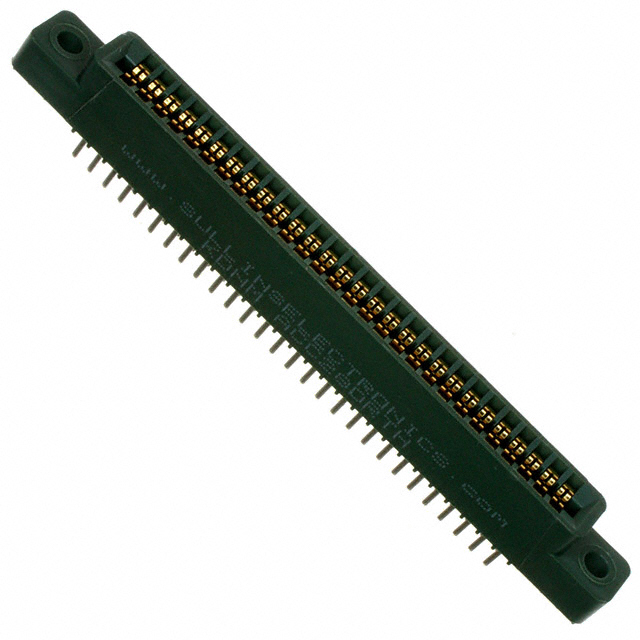

ACC28DRTH
Or copy the link below:
- Mfr.Part #
- ACC28DRTH
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 56POS 0.100
- Stock
- 30,159
- In Stock ：
- 30,159
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Contact Type :
- Full Bellows
- Body Breadth :
- 0.33 inch
- Contact Material :
- BERYLLIUM COPPER
- Total Number of Contacts :
- 56
- Body Depth :
- 0.431 inch
- PCB Contact Pattern :
- RECTANGULAR
- Mounting Type :
- Through Hole
- Card Type :
- Non Specified - Dual Edge
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 56
- Factory Lead Time :
- 3 Weeks
- Mount :
- Through Hole
- Contact Resistance :
- 30mOhm
- Rated Current (Signal) :
- 3A
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Read Out :
- Dual
- Operating Temperature :
- -65°C~150°C
- Plating Thickness :
- 10μin
- Number of Positions/Bay/Row :
- 28
- Connector Type :
- Full Bellows
- Body Length or Diameter :
- 3.675 inch
- Gender :
- FEMALE
- JESD-609 Code :
- e3
- Number of Rows :
- 2
- Termination :
- Solder
- Number of Conductors :
- ONE
- Packaging :
- Tray
- Color :
- Green
- Published :
- 2005
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Number Of PCB Rows :
- 2
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Card Thickness :
- 0.062 1.57mm
- Contact Finish :
- Gold
- Pitch :
- 0.100 2.54mm
- Datasheets
- ACC28DRTH
ACC28DRTH Documents
Female Green 0.100 2.54mm Beryllium Copper 2 Rows Tray Solder Gold 56 Positions Polyphenylene Sulfide (PPS)
ACC28DRTH Overview
In accordance with Tray's specifications, the material was packaged.Type Through Hole is recommended.Connecting the device uses the connector socket Full Bellows.
ACC28DRTH Features
ACC28DRTH Applications
There are a lot of Sullins Connector Solutions
ACC28DRTH Edgeboard Connectors applications.
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
