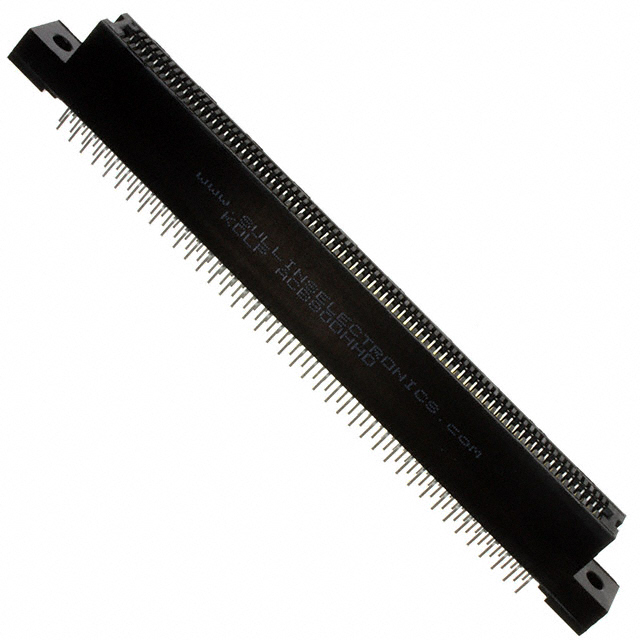

ACB80DHHD
Or copy the link below:
- Mfr.Part #
- ACB80DHHD
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FML 160POS 0.050
- Stock
- 15,004
- In Stock ：
- 15,004
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Factory Lead Time :
- 3 Weeks
- Card Type :
- Non Specified - Dual Edge
- ECCN Code :
- EAR99
- Contact Material :
- BERYLLIUM COPPER
- Operating Temperature :
- -65°C~150°C
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Packaging :
- Tube
- Number of Positions :
- 160
- Number of Rows :
- 2
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Color :
- Black
- Mount :
- Through Hole
- Number of Positions/Bay/Row :
- 80
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Gender :
- FEMALE
- Card Thickness :
- 0.062 1.57mm
- Connector Type :
- Hairpin Bellows
- HTS Code :
- 8536.69.40.40
- Read Out :
- Dual
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.125 (3.18mm) Dia
- Published :
- 2011
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Termination :
- Solder, Staggered
- Contact Type :
- Hairpin Bellows
- Pitch :
- 0.050 1.27mm
- Lead Free :
- Lead Free
- JESD-609 Code :
- e3
- Datasheets
- ACB80DHHD
ACB80DHHD Documents
Female Black 0.050 1.27mm Beryllium Copper 2 Rows Tube Solder, Staggered Gold 160 Positions Polyphenylene Sulfide (PPS)
ACB80DHHD Overview
The material was packaged in accordance with Tube's specifications.We recommend mounting type Through Hole.Using the connector socket Hairpin Bellows is how the device is connected.
ACB80DHHD Features
ACB80DHHD Applications
There are a lot of Sullins Connector Solutions
ACB80DHHD Edgeboard Connectors applications.
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
