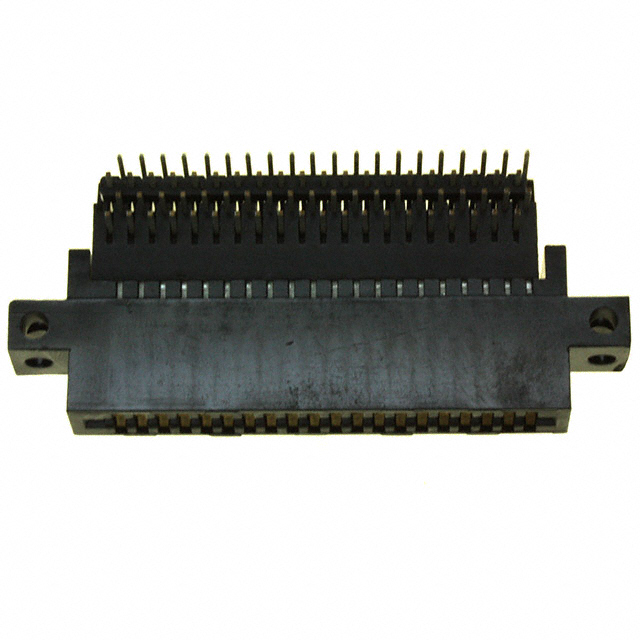

ACB40DKBS
Or copy the link below:
- Mfr.Part #
- ACB40DKBS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 80POS 0.100
- Stock
- 48,452
- In Stock ：
- 48,452
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Color :
- Black
- Number of Positions :
- 80
- Total Number of Contacts :
- 80
- Packaging :
- Tray
- PCB Contact Pattern :
- STAGGERED
- Reference Standard :
- UL
- Length - Termination :
- 0.185 inch
- Contact Type :
- Cantilever
- Feature :
- Bi-Level - High Density
- Pitch :
- 0.100 2.54mm
- Body Breadth :
- 0.375 inch
- Read Out :
- Dual
- Insulation Resistance :
- 1000000000Ohm
- Insertion Force-Max :
- 1.668 N
- Number of Rows :
- 2
- Pbfree Code :
- yes
- Number of Conductors :
- ONE
- Rated Current (Signal) :
- 3A
- Gender :
- FEMALE
- Contact Finish :
- Gold
- Operating Temperature :
- -65°C~150°C
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Published :
- 2005
- Termination :
- Solder
- Number of Positions/Bay/Row :
- 40
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Card Type :
- Non Specified - Dual Edge, Bi-Level
- Number Of PCB Rows :
- 4
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Body Depth :
- 1.195 inch
- Reliability :
- COMMERCIAL
- Card Thickness :
- 0.062 1.57mm
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- BERYLLIUM COPPER
- Plating Thickness :
- 30μin
- Connector Type :
- CARD EDGE CONNECTOR
- Datasheets
- ACB40DKBS
ACB40DKBS Documents
Female Black 0.100 2.54mm Beryllium Copper 2 Rows Tray Solder Gold 80 Positions Polyphenylene Sulfide (PPS)
ACB40DKBS Overview
We packaged the material in accordance with Tray's specifications.The mount type Through Hole, Right Angle is recommended.The device is connected with the connector socket CARD EDGE CONNECTOR.Features of the device are Bi-Level - High Density.
ACB40DKBS Features
ACB40DKBS Applications
There are a lot of Sullins Connector Solutions
ACB40DKBS Edgeboard Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
