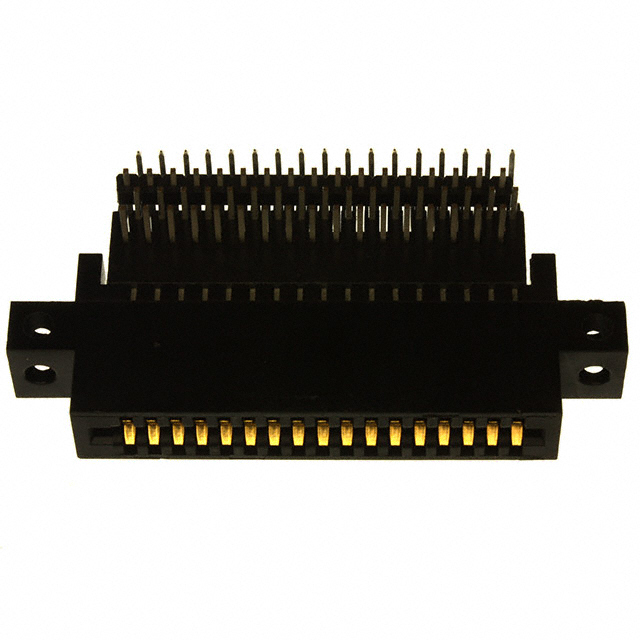

ACB34DKBS
Or copy the link below:
- Mfr.Part #
- ACB34DKBS
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 68POS 0.100
- Stock
- 12,715
- In Stock ：
- 12,715
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Edgeboard Connectors
- Body Breadth :
- 0.375 inch
- PCB Contact Pattern :
- STAGGERED
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Connector Type :
- CARD EDGE CONNECTOR
- Lead Free :
- Lead Free
- Flange Feature :
- Side Mount Opening, Unthreaded, 0.125 (3.18mm) Dia
- Operating Temperature :
- -65°C~150°C
- Published :
- 2005
- Color :
- Black
- Rated Current (Signal) :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Cantilever
- Number of Conductors :
- ONE
- Number of Positions/Bay/Row :
- 34
- Plating Thickness :
- 30μin
- Mounting Type :
- Through Hole, Right Angle
- Read Out :
- Dual
- Feature :
- Bi-Level - High Density
- Number of Positions :
- 68
- Contact Material :
- BERYLLIUM COPPER
- Number of Rows :
- 2
- Termination :
- Solder
- Number Of PCB Rows :
- 4
- Packaging :
- Tray
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1000000000Ohm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material - Insulation :
- Polyphenylene Sulfide (PPS)
- Gender :
- FEMALE
- Card Type :
- Non Specified - Dual Edge, Bi-Level
- Body Depth :
- 1.195 inch
- Pitch :
- 0.100 2.54mm
- Contact Finish :
- Gold
- Card Thickness :
- 0.062 1.57mm
- Mount :
- Through Hole
- Reference Standard :
- UL
- Length - Termination :
- 0.185 inch
- Total Number of Contacts :
- 68
- Datasheets
- ACB34DKBS
Female Black 0.100 2.54mm Beryllium Copper 2 Rows Tray Solder Gold 68 Positions Polyphenylene Sulfide (PPS)
ACB34DKBS Overview
In accordance with Tray's specifications, the material was packaged.Type Through Hole, Right Angle is recommended.Connecting the device uses the connector socket CARD EDGE CONNECTOR.In terms of features, the device has Bi-Level - High Density.
ACB34DKBS Features
ACB34DKBS Applications
There are a lot of Sullins Connector Solutions
ACB34DKBS Edgeboard Connectors applications.
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
