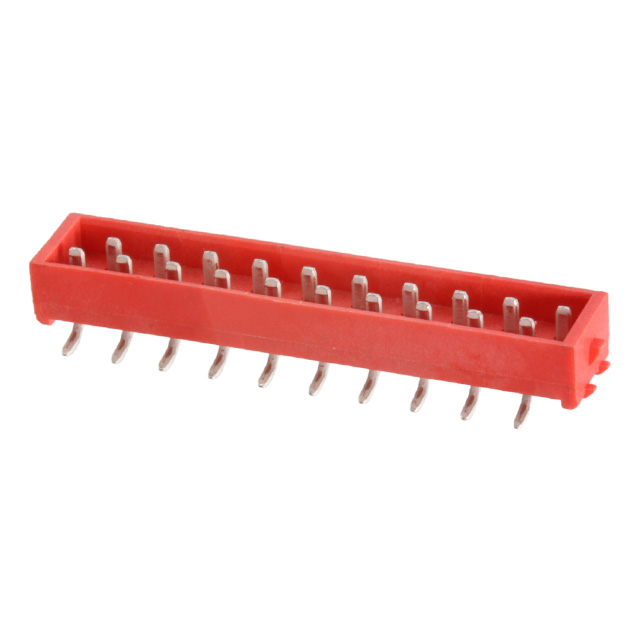

9-338728-0
Or copy the link below:
- Mfr.Part #
- 9-338728-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 20POS 2.54MM
- Stock
- 539
- In Stock ：
- 539
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- ELV :
- Compliant
- Contact Plating :
- Tin
- Radiation Hardening :
- No
- Mounting Type :
- Surface Mount
- Number of Contacts :
- 20
- Operating Supply Voltage :
- 100V
- Insulation Color :
- Red
- Orientation :
- Vertical
- Operating Temperature :
- -40°C~105°C
- Pitch - Mating :
- 0.100 2.54mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Resistance :
- 10MOhm
- Depth :
- 5.15mm
- Current Rating (Amps) :
- 1.5A
- Packaging :
- Tape and Reel (TR)
- Number of Rows :
- 2
- Contact Material :
- Brass
- Max Operating Temperature :
- 105°C
- PCB Mounting Orientation :
- Vertical
- Length :
- 28.6mm
- Termination :
- Solder
- Factory Lead Time :
- 20 Weeks
- Current Rating :
- 1A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Pick and Place
- PCB Thickness :
- 1.6mm
- Material Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 1GOhm
- Voltage - Rated :
- 230V
- Number of Positions :
- 20
- Contact Finish - Mating :
- Tin
- Height :
- 4.6mm
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Color :
- Red
- Insulation Height :
- 0.181 4.60mm
- Mount :
- Surface Mount
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Fastening Type :
- Latch Lock
- Applications :
- GENERAL PURPOSE
- Series :
- Micro-MaTch
- Published :
- 2008
- Shrouding :
- Shrouded - 4 Wall
- Pitch :
- 1.27mm
- Min Operating Temperature :
- -40°C
- Connector Type :
- Header
- Housing Material :
- Polyester
- Contact Current Rating :
- 1.5A
- Style :
- Board to Board or Cable
- Housing Color :
- Red
- Contact Shape :
- RECTANGULAR
- Row Spacing :
- 1.5 mm
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Mating Connector Lock :
- Without
- PCB Mount Retention :
- Without
- RoHS Status :
- RoHS Compliant
- Contact Finish - Post :
- Tin
- Datasheets
- 9-338728-0
Micro-MaTch Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA46), Nylon 4/6, Glass Filled 20-Position Board to Board or Cable 0.181 4.60mm Height
9-338728-0 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Micro-MaTch Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.A possible application of the device would be General Purpose.With its Pick and Place feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 100V.The device is operating at -40°C~105°C Operating Temperature.
9-338728-0 Features
Micro-MaTch series
9-338728-0 Applications
There are a lot of TE Connectivity AMP Connectors
9-338728-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
