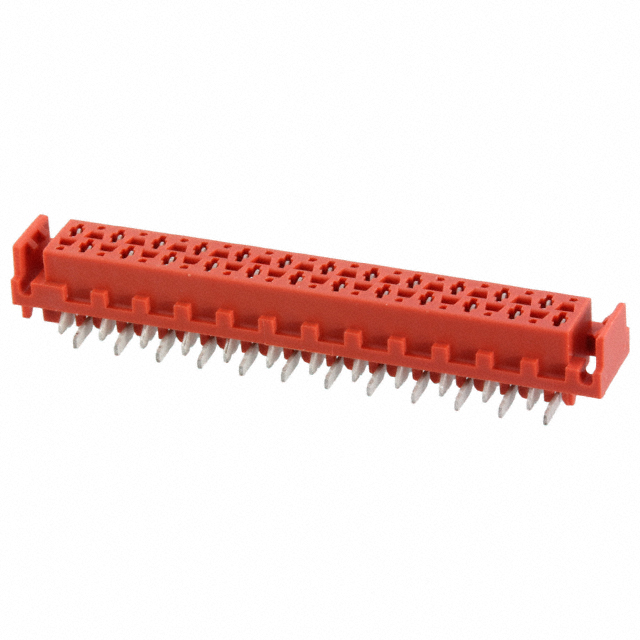

9-338069-4

Share

Or copy the link below:

Mfr.Part #
9-338069-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 24POS 0.1 TIN SMD
Stock
668
In Stock :
668

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Mounting Type :
Surface Mount
Operating Supply Voltage :
100V
Reliability :
COMMERCIAL
Mixed Contacts :
No
Row Spacing - Mating :
0.100 (2.54mm)
Pbfree Code :
yes
Radiation Hardening :
No
Polarization Key :
POLARIZED HOUSING
Insulation Resistance :
1GOhm
Reference Standard :
UL
Number of Rows :
2
Length :
35mm
Insulation Height :
0.209 5.30mm
Depth :
7mm
Total Number of Contacts :
24
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Gender :
FEMALE
Contact Finish - Mating :
Tin
PCB Thickness :
1.6mm
Contact Type :
Forked
Number of Conductors :
ONE
Material Flammability Rating :
UL94 V-0
IEC Conformance :
No
Number of Positions Loaded :
All
Style :
Board to Board or Cable
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
ECCN Code :
EAR99
Withdrawl Force-Min :
1.0008 N
Packaging :
Tape and Reel (TR)
Insulator Color :
Red
Orientation :
Vertical
Height :
6.9mm
Fastening Type :
Friction Lock
Feature :
Pick and Place
RoHS Status :
RoHS Compliant
Voltage - Rated :
100Vdc
Contact Current Rating :
1.5A
Connector Type :
Receptacle
Current Rating :
1.5A
Housing Material :
Polyamide
PCB Contact Row Spacing :
4.4958 mm
Applications :
Automotive, General Purpose
REACH SVHC :
No SVHC
Factory Lead Time :
23 Weeks
Flammability Rating :
UL94 V-0
ELV :
Compliant
Mount :
Surface Mount
Operating Temperature :
-40°C~105°C
Number of Positions :
24
Filter Feature :
No
HTS Code :
8536.69.40.40
Housing Color :
Red
Contact Material :
Phosphor Bronze
Pitch - Mating :
0.100 2.54mm
MIL Conformance :
No
Termination :
Solder
Published :
2008
Mating Connector Lock :
Without
Lead Length :
5.3mm
Mating Contact Pitch :
0.05 inch
Lead Free :
Lead Free
Series :
Micro-MaTch
Number Of PCB Rows :
2
DIN Conformance :
No
Insulation Material :
Polyamide (PA46), Nylon 4/6, Glass Filled
Datasheets
9-338069-4
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 9-338069-4 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Operating Temperature:-40°C~105°C, 9-338069-4 pinout, 9-338069-4 datasheet PDF, 9-338069-4 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 9-338069-4 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 9-338069-4


2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Tin Polyamide (PA46), Nylon 4/6, Glass Filled 24 Positions Forked

9-338069-4 Overview


The packaging contains Receptacle.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-MaTch belongs to the Micro-MaTch Series.In addition to Automotive, General Purpose, there are other possible applications for the device.In many ways, it is more powerful due to its Pick and Place feature.There is a Surface Mount mount on the part.A 100V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.

9-338069-4 Features


Micro-MaTch series


9-338069-4 Applications


There are a lot of TE Connectivity AMP Connectors
9-338069-4 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
