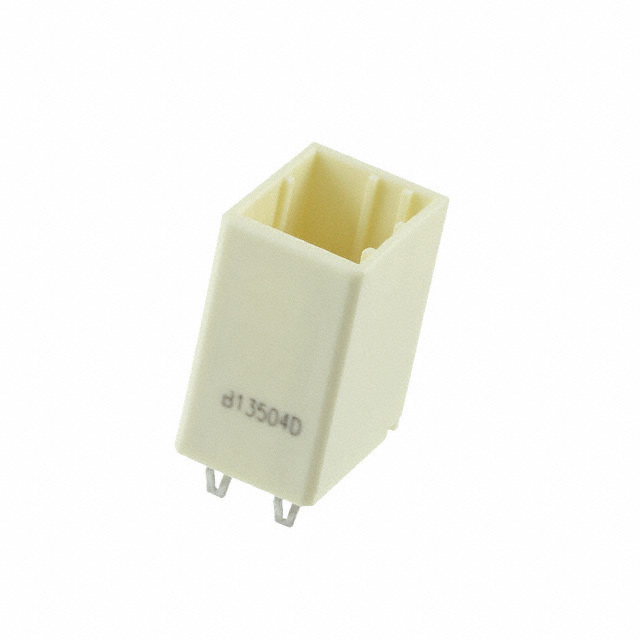

9-1318124-2
Or copy the link below:
- Mfr.Part #
- 9-1318124-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.5MM
- Stock
- 17,112
- In Stock ：
- 17,112
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shielding :
- Unshielded
- Contact Material :
- COPPER ALLOY
- Packaging :
- Tube
- Current Rating (Amps) :
- 5A
- Contact Finish - Mating :
- Gold
- Housing Material :
- Polyester
- Gender :
- Male
- Length - Tail :
- 3.4036mm
- Sealable :
- No
- Connector Type :
- Header
- Number of Rows :
- 2
- Approval Agency :
- UL
- Voltage - Rated :
- 250V
- Termination :
- Solder
- Housing Color :
- Natural
- PCB Mounting Orientation :
- Vertical
- Shrouding :
- Shrouded - 4 Wall
- Material Flammability Rating :
- UL94 V-0
- ELV :
- Compliant
- Contact Retention :
- Without
- Mating Alignment :
- With
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 221°C
- Pitch :
- 2.4892mm
- Contact Current Rating :
- 5A
- Factory Lead Time :
- 18 Weeks
- VDE Tested :
- No
- Number of Contacts :
- 6
- Width :
- 13.1826mm
- Mounting Type :
- Through Hole
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Mount :
- Through Hole
- PCB Thickness :
- 1.6002mm
- Operating Temperature :
- -55°C~105°C
- RoHS Status :
- RoHS Compliant
- Height :
- 17.79mm
- Insulation Height :
- 0.700 17.78mm
- Operating Supply Voltage :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Halogen Free :
- Halogen Free
- Contact Style :
- Straight
- Insulation Color :
- Natural
- PCB Mount Retention :
- With
- Number of Positions :
- 6
- Radiation Hardening :
- No
- Applications :
- General Purpose, Industrial
- Contact Shape :
- RECTANGULAR
- Mating Retention :
- With
- Length :
- 10.1854mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Length - Post :
- 0.134 3.40mm
- Pitch - Mating :
- 0.098 2.50mm
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.148 (3.75mm)
- Min Operating Temperature :
- -67°C
- Feature :
- Board Lock
- Contact Plating :
- Gold
- Orientation :
- Straight
- Preloaded :
- yes
- Contact Finish - Post :
- Tin
- Series :
- Dynamic D-2100
- Contact Type :
- Tab
- Published :
- 2011
- Fastening Type :
- Detent Lock
- Style :
- Board to Board or Cable
- Current Rating :
- 5A
- Datasheets
- 9-1318124-2
Dynamic D-2100 Series 2-Row Header Solder Copper Alloy Tube Through Hole Gold Thermoplastic, Polyester, Glass Filled 6-Position Board to Board or Cable 0.700 17.78mm Height
9-1318124-2 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Dynamic D-2100 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
9-1318124-2 Features
Dynamic D-2100 series
9-1318124-2 Applications
There are a lot of TE Connectivity AMP Connectors
9-1318124-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
