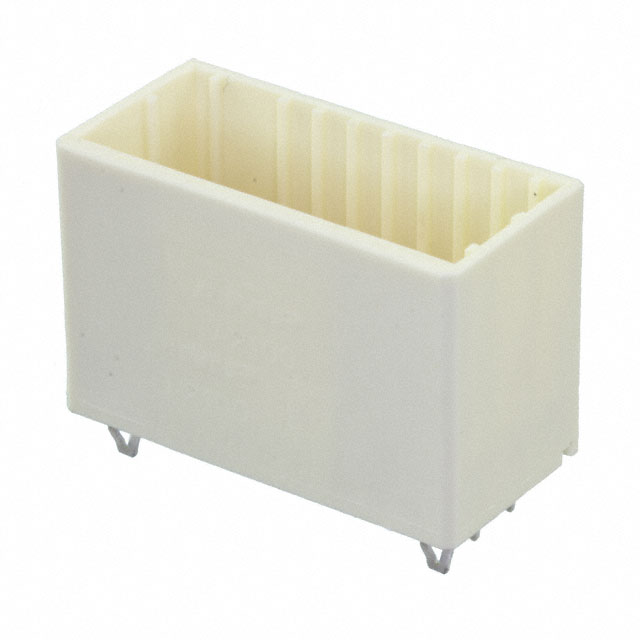

9-1318127-2
Or copy the link below:
- Mfr.Part #
- 9-1318127-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.5MM
- Stock
- 21,565
- In Stock ：
- 21,565
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Packaging :
- Tube
- Published :
- 2011
- Orientation :
- Straight
- Factory Lead Time :
- 18 Weeks
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Board or Cable
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Width :
- 13.1826mm
- PCB Mount Retention :
- With
- Row Spacing - Mating :
- 0.148 (3.75mm)
- Number of Rows :
- 2
- RoHS Status :
- RoHS Compliant
- Mating Alignment :
- With
- Number of Positions :
- 20
- Radiation Hardening :
- No
- Preloaded :
- yes
- Shielding :
- Unshielded
- Contact Length - Post :
- 0.134 3.40mm
- Flammability Rating :
- UL94 V-0
- Height :
- 17.79mm
- Halogen Free :
- Halogen Free
- Operating Temperature :
- -55°C~105°C
- Current Rating :
- 5A
- Number of Contacts :
- 20
- Insulation Color :
- Natural
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Contact Shape :
- RECTANGULAR
- Current Rating (Amps) :
- 5A
- Pitch - Mating :
- 0.098 2.50mm
- Contact Current Rating :
- 5A
- Applications :
- General Purpose, Industrial
- Contact Retention :
- Without
- Number of Positions Loaded :
- All
- Contact Type :
- Tab
- Shrouding :
- Shrouded - 4 Wall
- Housing Color :
- Natural
- Feature :
- Board Lock
- Series :
- Dynamic D-2100
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulation Height :
- 0.700 17.78mm
- Mating Retention :
- With
- Gender :
- Male
- Length :
- 27.686mm
- Contact Plating :
- Gold
- Operating Supply Voltage :
- 250V
- Max Operating Temperature :
- 221°C
- Min Operating Temperature :
- -67°C
- Contact Style :
- Straight
- PCB Mounting Orientation :
- Vertical
- Voltage - Rated :
- 250V
- Contact Finish - Mating :
- Gold
- Pitch :
- 2.4892mm
- Contact Material :
- COPPER ALLOY
- Fastening Type :
- Detent Lock
- Connector Type :
- Header
- Mount :
- Through Hole
- Contact Finish - Post :
- Tin
- ELV :
- Compliant
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 1.6002mm
- VDE Tested :
- No
- Mounting Type :
- Through Hole
- Length - Tail :
- 3.4036mm
- Termination :
- Solder
- Sealable :
- No
- Approval Agency :
- UL
- Datasheets
- 9-1318127-2
Dynamic D-2100 Series 2-Row Header Solder Copper Alloy Tube Through Hole Gold Thermoplastic, Polyester, Glass Filled 20-Position Board to Board or Cable 0.700 17.78mm Height
9-1318127-2 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Dynamic D-2100 Series.Use it when the temperature is below 221°C.Temperatures below -67°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial.It is more powerful in many ways due to its Board Lock feature.It is mounted by Through Hole.Its operating supply voltage is 250V.It operates at an operating temperature of -55°C~105°C.
9-1318127-2 Features
Dynamic D-2100 series
9-1318127-2 Applications
There are a lot of TE Connectivity AMP Connectors
9-1318127-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
