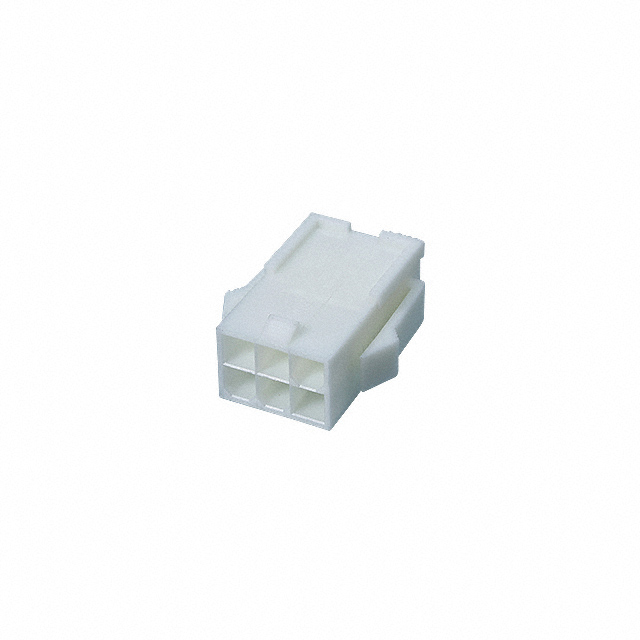

794598-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Polarization Key :

POLARIZED HOUSING

Depth :

23.9mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Material :

Polyamide

Option :

GENERAL PURPOSE

Color :

White

Contact Termination :

Crimp

Contact Design :

PREASSEM CONN

Mount :

Panel

Wire Gauge (Max) :

26 AWG

UL Flammability Code :

94V-0

DIN Conformance :

No

Rated Current (Signal) :

9A

Mixed Contacts :

No

Contact Type :

Male Pin

Wire/Cable Gauge :

26 AWG

ECCN Code :

EAR99

Reference Standard :

UL

Insulation Resistance :

1000000000Ohm

MIL Conformance :

No

RoHS Status :

RoHS Compliant

Lead Free :

Not Applicable

Pitch :

0.165 4.20mm

Empty Shell :

No

Fastening Type :

Locking Ramp

Series :

AMP-DUAC

IEC Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Total Number of Contacts :

6

Factory Lead Time :

14 Weeks

Row Spacing :

0.165 (4.20mm)

Contact Material :

NOT SPECIFIED

Current Rating :

9A

Number of Rows :

2

Note :

Contacts Not Included

Orientation :

Straight

Housing Material :

Nylon

Reliability :

COMMERCIAL

Contact Resistance :

5mOhm

Width :

23.876mm

Wire Gauge (Min) :

18 AWG

Max Voltage Rating (AC) :

600V

Flammability Rating :

UL94 V-0

Number of Positions :

6

Pbfree Code :

yes

Connector Type :

PLUG

Filter Feature :

No

Length :

13.7922mm

Mounting Type :

Panel Mount, Snap-In

Height :

11.7mm

Gender :

Male

ELV :

Compliant

VDE Tested :

yes

Max Operating Temperature :

221°C

Published :

2004

Min Operating Temperature :

-67°C

Packaging :

Bulk
