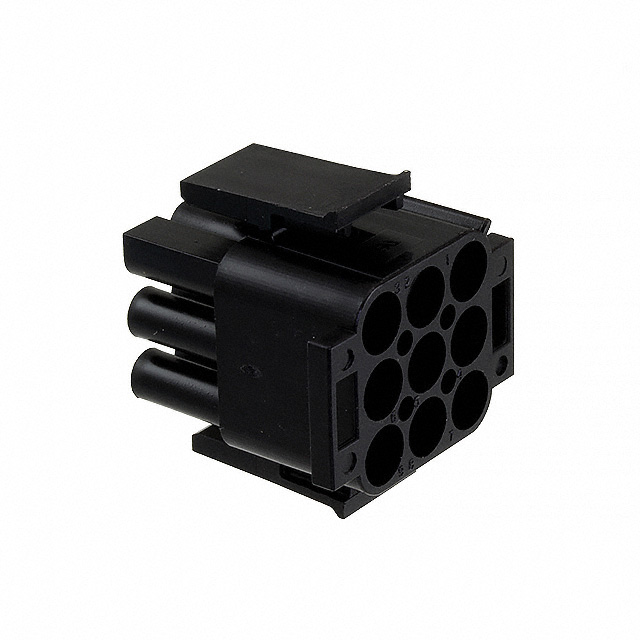

794537-1
Or copy the link below:
- Mfr.Part #
- 794537-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG 9POS 150C BLK
- Stock
- 5,915
- In Stock ：
- 5,915
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Series :
- Universal MATE-N-LOK
- Factory Lead Time :
- 17 Weeks
- Flammability Rating :
- UL94 V-2
- Row Spacing :
- 0.250 (6.35mm)
- Connector Type :
- PLUG
- Panel Thickness :
- 2.286mm
- Min Operating Temperature :
- -67°C
- MIL Conformance :
- No
- Number of Rows :
- 3
- Filter Feature :
- No
- Number of Contacts :
- 9
- Mixed Contacts :
- No
- IEC Conformance :
- No
- VDE Tested :
- yes
- Lead Free :
- Not Applicable
- Note :
- Contacts Not Included
- Color :
- Black
- Shell Material :
- Polyamide
- Approval Agency :
- CSA
- Orientation :
- Straight
- Pitch :
- 6.35mm
- Operating Supply Voltage :
- 600V
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Cable, Free Hanging
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 221°C
- Sealable :
- No
- Pbfree Code :
- yes
- Contact Type :
- MALE OR FEMALE
- Published :
- 2008
- Fastening Type :
- Latch Lock
- Contact Termination :
- Crimp
- Empty Shell :
- No
- Packaging :
- Bulk
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- Without
- Housing Material :
- Nylon
- Length :
- 27.43mm
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- ELV :
- Compliant
- Current Rating :
- 19A
- Datasheets
- 794537-1
3 Rows Plug Bulk Black Free Hanging (In-Line) Male or Female Crimp Universal MATE-N-LOK Nylon
794537-1 Overview
Packaging is in the form of Plug.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Universal MATE-N-LOK Series.There is a mounting hole at Cable, Free Hanging.It runs on 600V voltage.
794537-1 Features
Universal MATE-N-LOK series
794537-1 Applications
There are a lot of TE Connectivity AMP Connectors
794537-1 Rectangular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
