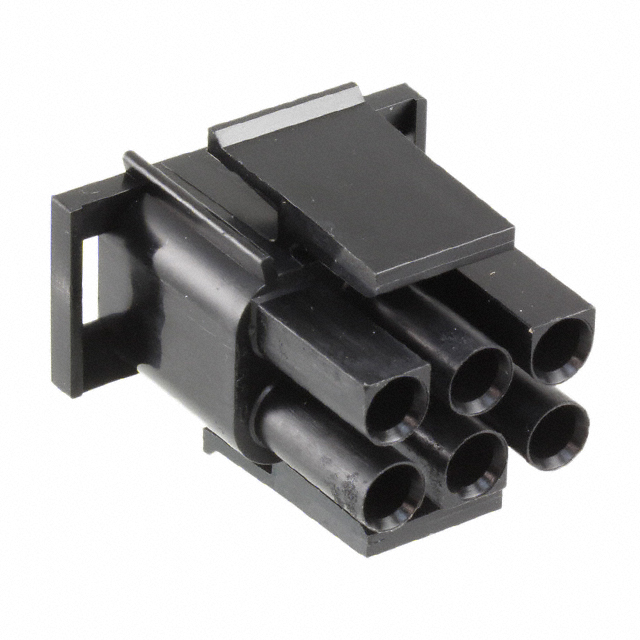

794535-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Insulation Resistance :

1000000000Ohm

Body Breadth :

0.55 inch

Lead Free :

Not Applicable

Contact Type :

MALE OR FEMALE

Min Operating Temperature :

-55°C

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Number of Rows :

2

Mount :

Cable, Free Hanging

Contact Retention :

Without

Packaging :

Bulk

Insertion Force-Max :

4.448 N

Panel Thickness :

2.286mm

IEC Conformance :

No

Series :

Universal MATE-N-LOK

Row Spacing :

0.250 (6.35mm)

Flammability Rating :

UL94 V-2

DIN Conformance :

No

Housing Material :

Nylon

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Color :

Black

ECCN Code :

EAR99

Published :

2007

Length :

27.43mm

Pbfree Code :

yes

Mixed Contacts :

No

Body Depth :

1.08 inch

Voltage - Rated :

600V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Sealable :

No

Current Rating :

36A

Fastening Type :

Latch Lock

ELV :

Compliant

Number of Contacts :

6

Connector Type :

PLUG

Contact Termination :

Crimp

Factory Lead Time :

6 Weeks

Dielectric Withstanding Voltage :

5000VAC V

Operating Supply Voltage :

600V

Mounting Type :

Free Hanging (In-Line)

Empty Shell :

No

VDE Tested :

yes

Durability :

50 Cycles

Rated Current (Signal) :

19A

Approval Agency :

CSA

Orientation :

Straight

Number of Conductors :

ONE

Max Operating Temperature :

125°C

Note :

Contacts Not Included

Pitch :

6.35mm

Shell Material :

Polyamide
