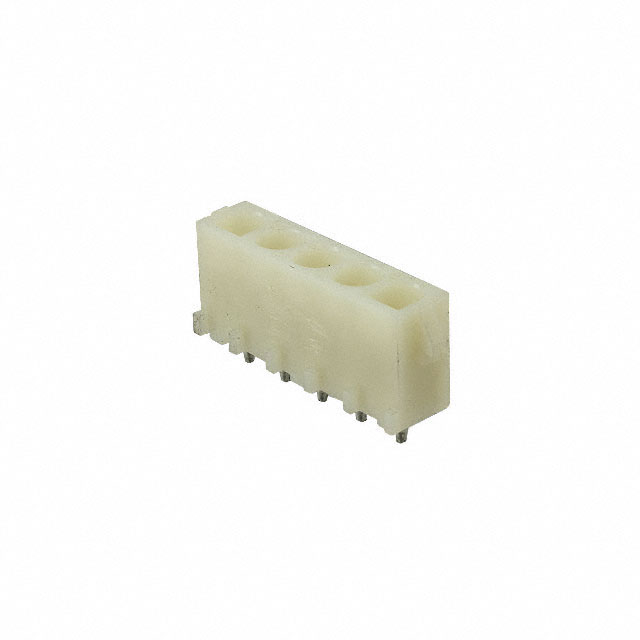

794584-1
Or copy the link below:
- Mfr.Part #
- 794584-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 5POS 0.25 TIN PCB
- Stock
- 1,760
- In Stock ：
- 1,760
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- ELV :
- Compliant
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- DIN Conformance :
- No
- VDE Tested :
- yes
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Series :
- Universal MATE-N-LOK
- Length :
- 33.02mm
- Insulation Color :
- Natural
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Connector Type :
- Header
- Empty Shell :
- No
- Contact Material :
- Phosphor Bronze
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- UL Flammability Code :
- 94V-0
- Lead Free :
- Lead Free
- Contact Current Rating :
- 12A
- Max Operating Temperature :
- 221°C
- MIL Conformance :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- Published :
- 2005
- Width :
- 7.82mm
- Min Operating Temperature :
- -40°C
- Contact Shape :
- Circular
- Sealable :
- No
- Filter Feature :
- No
- Number of Rows :
- 1
- Current Rating :
- 19A
- Style :
- Board to Cable/Wire
- Circuit Application :
- Power
- Height :
- 13.97mm
- Insulation Height :
- 0.580 14.73mm
- Contact Retention :
- Without
- IEC Conformance :
- No
- Operating Supply Voltage :
- 600V
- Factory Lead Time :
- 15 Weeks
- Number of Contacts :
- 5
- Approval Agency :
- CSA
- Pitch - Mating :
- 0.250 6.35mm
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-2
- Termination :
- Solder
- Contact Length - Post :
- 0.155 3.94mm
- Mounting Type :
- Through Hole
- Housing Material :
- Nylon
- Mount :
- Through Hole
- Contact Type :
- Female Socket
- Flammability Rating :
- UL94 V-0
- Additional Feature :
- MATE-N-LOK, POLARIZED
- Feature :
- Board Guide
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Housing Color :
- Black
- Voltage - Rated :
- 600V
- Mixed Contacts :
- No
- Fastening Type :
- Locking Ramp
- Orientation :
- Vertical
- Datasheets
- 794584-1
1 Rows Header Solder Phosphor Bronze Through Hole Bulk Tin Polyamide (PA), Nylon Female Socket
794584-1 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Universal MATE-N-LOK Series of products.Additionally, there are other features, such as MATE-N-LOK, POLARIZED.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -40°C at all times.A number of features make it more powerful because of its Board Guide feature.Through Hole mounts the part.A voltage of 600V is required to operate this memory.
