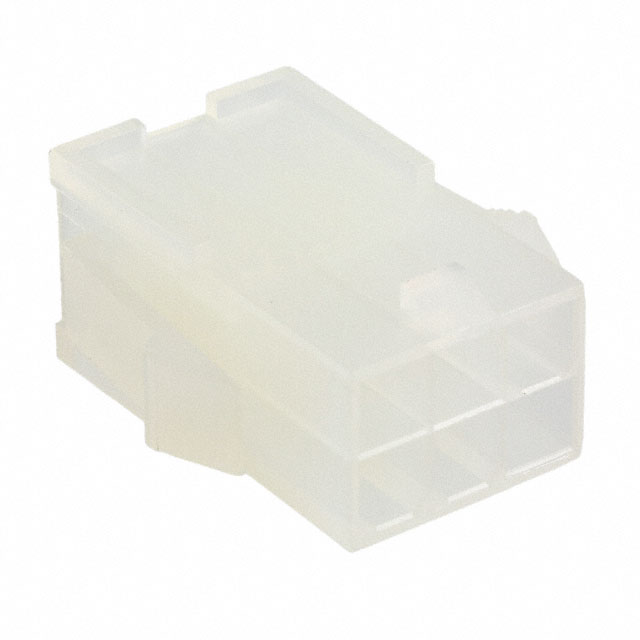

794550-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Flammability Rating :

UL94 V-2

Lead Free :

Not Applicable

Contact Termination :

Crimp

Polarization Key :

POLARIZED HOUSING

Packaging :

Bulk

ECCN Code :

EAR99

Approval Agency :

CSA

Rated Current (Signal) :

9A

Total Number of Contacts :

6

Number of Rows :

2

Row Spacing :

0.165 (4.20mm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

Male Pin

Reference Standard :

UL

Contact Resistance :

3mOhm

Pbfree Code :

yes

Depth :

23.9mm

Mounting Type :

Panel Mount, Snap-In

Max Voltage Rating (AC) :

600V

Radiation Hardening :

No

ELV :

Compliant

Length :

13.7922mm

DIN Conformance :

No

Min Operating Temperature :

-67°C

Fastening Type :

Locking Ramp

Filter Feature :

No

Factory Lead Time :

14 Weeks

Mount :

Panel

Voltage - Rated :

600V

Insulation Resistance :

1000000000Ohm

VDE Tested :

yes

Note :

Contacts Not Included

Width :

23.876mm

Color :

Natural

IEC Conformance :

No

Pitch :

0.165 4.20mm

Published :

2005

Reliability :

COMMERCIAL

RoHS Status :

RoHS Compliant

Height :

11.7mm

Series :

AMP-DUAC

Housing Material :

Nylon

Max Operating Temperature :

221°C

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Contact Gender :

Male

Current Rating :

9A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

6

Orientation :

Straight

MIL Conformance :

No

Connector Type :

PLUG
