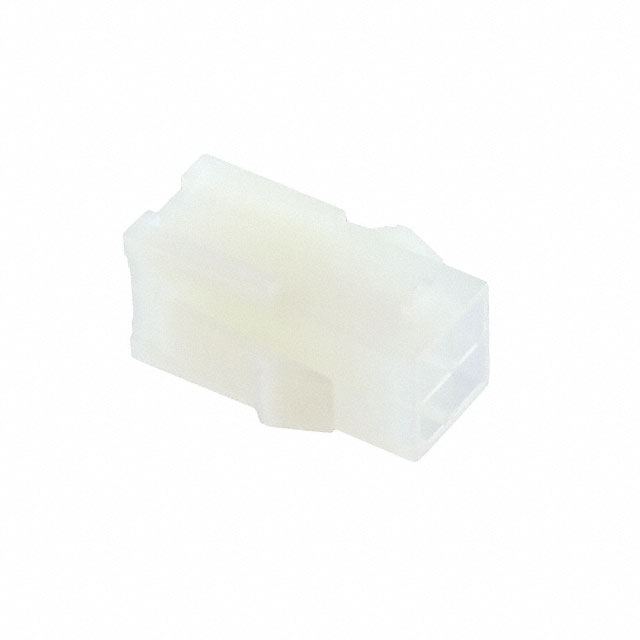

794550-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Contact Termination :

Crimp

Note :

Contacts Not Included

Contact Type :

Male Pin

Fastening Type :

Locking Ramp

Published :

2008

Contact Retention :

Without

Option :

GENERAL PURPOSE

Pitch :

0.165 4.20mm

Min Operating Temperature :

-67°C

Factory Lead Time :

14 Weeks

Rated Current (Signal) :

9A

Number of Positions :

4

Lead Free :

Lead Free

Total Number of Contacts :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

3mOhm

Mounting Type :

Panel Mount, Snap-In

Row Spacing :

0.165 (4.20mm)

Max Operating Temperature :

221°C

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Orientation :

Straight

Mount :

Panel

Operating Supply Voltage :

600V

Series :

AMP-DUAC

Insulation Resistance :

1000000000Ohm

Color :

Natural

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Width :

23.876mm

Reliability :

COMMERCIAL

Connector Type :

PLUG

DIN Conformance :

No

Number of Rows :

2

ECCN Code :

EAR99

Depth :

23.9mm

Max Voltage Rating (AC) :

600V

RoHS Status :

RoHS Compliant

MIL Conformance :

No

IEC Conformance :

No

Reference Standard :

UL

Flammability Rating :

UL94 V-2

Length :

9.601mm

Approval Agency :

CSA

Packaging :

Bulk

Height :

11.7mm

VDE Tested :

yes

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

Housing Material :

Nylon

Sealable :

No

Pbfree Code :

yes

Mixed Contacts :

No
