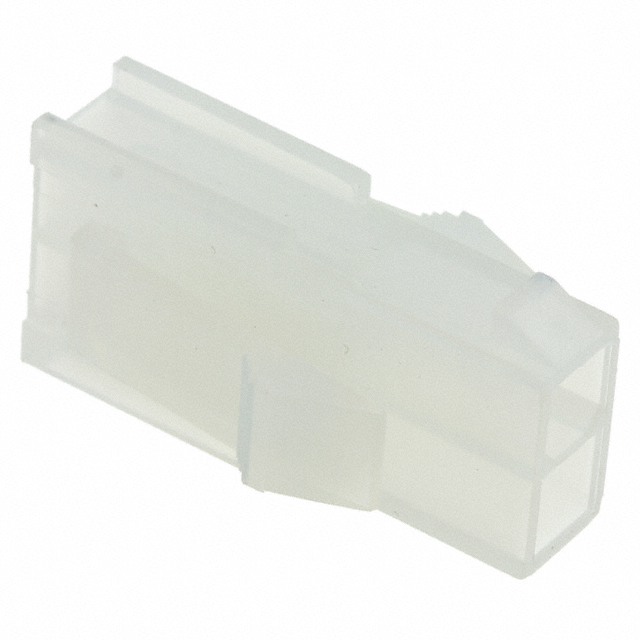

794550-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

RoHS Status :

RoHS Compliant

Pitch :

4.2mm

Number of Positions :

2

Contact Termination :

Crimp

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Note :

Contacts Not Included

Filter Feature :

No

Fastening Type :

Locking Ramp

DIN Conformance :

No

Width :

23.876mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Current Rating :

9A

Orientation :

Straight

Pbfree Code :

yes

Sealable :

No

Color :

Natural

Voltage - Rated :

600V

Published :

2008

Max Operating Temperature :

221°C

Contact Resistance :

3mOhm

Length :

5.41mm

Option :

GENERAL PURPOSE

Body Breadth :

0.46 inch

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Nylon

Contact Retention :

Without

Min Operating Temperature :

-67°C

MIL Conformance :

No

Mount :

Panel

Mounting Type :

Panel Mount, Snap-In

Reference Standard :

UL

Approval Agency :

CSA

Total Number of Contacts :

2

ELV :

Compliant

Mixed Contacts :

No

IEC Conformance :

No

Connector Type :

PLUG

Rated Current (Signal) :

9A

Factory Lead Time :

28 Weeks

VDE Tested :

yes

Row Spacing :

0.165 (4.20mm)

Operating Supply Voltage :

600V

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Gender :

Male

Series :

AMP-DUAC

Flammability Rating :

UL94 V-2

Insulation Resistance :

1000000000Ohm

Packaging :

Bulk

Depth :

23.9mm

Lead Free :

Not Applicable

Contact Type :

Male Pin

Height :

11.7mm

Max Voltage Rating (AC) :

600V
