794542-8

Share

Or copy the link below:

Mfr.Part #
794542-8
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG HSG 8POS 4.20MM
Stock
26,862
In Stock :
26,862

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Rectangular Connector Housings
Max Voltage Rating (AC) :
600V
Reference Standard :
UL
Packaging :
Bulk
Body Breadth :
0.46 inch
Rated Current (Signal) :
9A
Color :
Natural
Min Operating Temperature :
-67°C
Contact Termination :
Crimp
Factory Lead Time :
14 Weeks
MIL Conformance :
No
Fastening Type :
Locking Ramp
Contact Type :
Male Pin
ECCN Code :
EAR99
Contact Resistance :
3mOhm
Wire Gauge (Max) :
26 AWG
Note :
Contacts Not Included
Depth :
23.9mm
Pbfree Code :
yes
RoHS Status :
RoHS Compliant
Lead Free :
Not Applicable
Mount :
Cable, Free Hanging
Connector Type :
PLUG
Reliability :
COMMERCIAL
Contact Finish - Mating :
NOT SPECIFIED
Mixed Contacts :
No
ELV :
Compliant
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Gauge (Min) :
18 AWG
Current Rating :
9A
Contact Material :
NOT SPECIFIED
Height :
11.7mm
Flammability Rating :
UL94 V-2
Number of Rows :
2
Width :
23.876mm
Published :
2004
Row Spacing :
0.165 (4.20mm)
Polarization Key :
POLARIZED HOUSING
Filter Feature :
No
Mounting Type :
Free Hanging (In-Line)
Total Number of Contacts :
8
Gender :
Male
Wire/Cable Gauge :
26 AWG
Pitch :
0.165 4.20mm
Max Operating Temperature :
221°C
Orientation :
Straight
Series :
AMP-DUAC
IEC Conformance :
No
Housing Material :
Nylon
Insulation Resistance :
1000000000Ohm
Option :
GENERAL PURPOSE
DIN Conformance :
No
Number of Positions :
8
VDE Tested :
yes
Length :
18mm
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Datasheets
794542-8
Introducing Rectangular Connector Housings TE Connectivity AMP Connectors 794542-8 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 794542-8 pinout, 794542-8 datasheet PDF, 794542-8 amp .Beyond Rectangular Connector Housings TE Connectivity AMP Connectors 794542-8 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

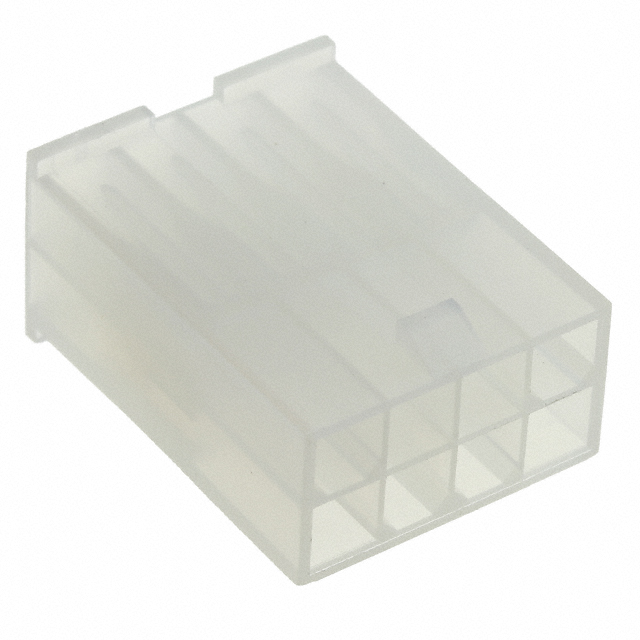

TE Connectivity AMP Connectors 794542-8


2 Rows Plug Bulk Natural 8 Positions Free Hanging (In-Line) Male Pin Crimp AMP-DUAC Nylon

794542-8 Overview


It comes in a Plug package.Free Hanging (In-Line) is the mounting type of the device.We pack the product in a Bulk case.This is from the AMP-DUAC Series.This part is mounted by Cable, Free Hanging.

794542-8 Features


AMP-DUAC series


794542-8 Applications


There are a lot of TE Connectivity AMP Connectors
794542-8 Rectangular Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
