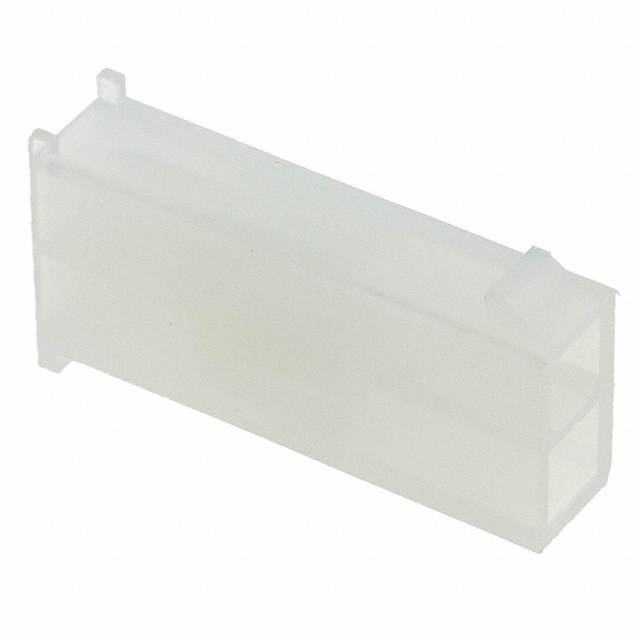

794542-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Contact Gender :

Male

Pitch :

4.2mm

Insulation Resistance :

1000000000Ohm

Housing Material :

Nylon

MIL Conformance :

No

Number of Positions :

2

Max Voltage Rating (AC) :

600V

Mounting Type :

Free Hanging (In-Line)

Depth :

23.9mm

Wire/Cable Gauge :

26 AWG

Polarization Key :

POLARIZED HOUSING

Row Spacing :

0.165 (4.20mm)

Flammability Rating :

UL94 V-2

Wire Gauge (Max) :

26 AWG

Mixed Contacts :

No

Number of Rows :

2

Width :

23.876mm

Min Operating Temperature :

-67°C

Contact Resistance :

3mOhm

RoHS Status :

RoHS Compliant

Orientation :

Straight

Body Breadth :

0.46 inch

Pbfree Code :

yes

Published :

2004

Filter Feature :

No

ECCN Code :

EAR99

Lead Free :

Not Applicable

Voltage - Rated AC :

600V

Radiation Hardening :

No

VDE Tested :

yes

IEC Conformance :

No

Fastening Type :

Locking Ramp

Length :

5.4102mm

HTS Code :

8536.69.40.40

Contact Type :

Male Pin

Option :

GENERAL PURPOSE

Mount :

Cable, Free Hanging

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reference Standard :

UL

Note :

Contacts Not Included

Rated Current (Signal) :

9A

Reliability :

COMMERCIAL

Color :

Natural

Connector Type :

PLUG

Wire Gauge (Min) :

18 AWG

Height :

11.7mm

DIN Conformance :

No

Max Operating Temperature :

221°C

Packaging :

Bulk

ELV :

Compliant

Current Rating :

9A

Factory Lead Time :

12 Weeks

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

2

Series :

AMP-DUAC

Contact Termination :

Crimp
