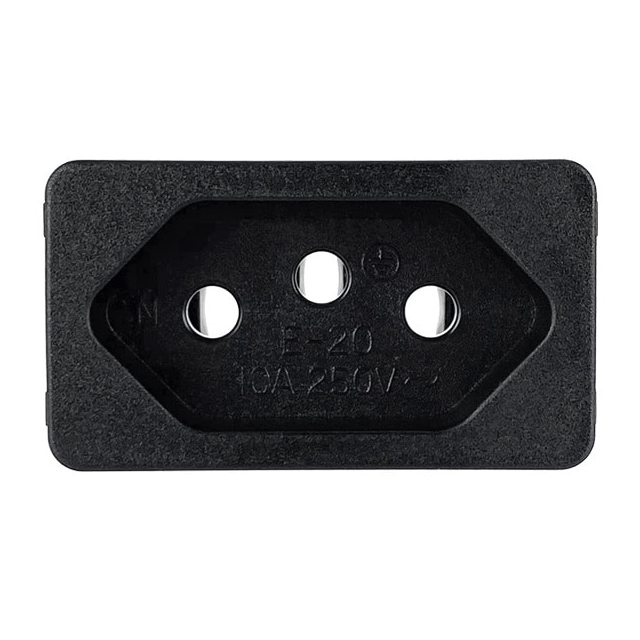

741W-J/01

Manufacturer :

Qualtek Electronics Corp.

Product Category :

Plugs and Receptacles

Form :

Wall Mount (Class II)

Number of Positions :

3

Series :

PSAA20R (20W)

Efficiency :

Level V

Applications :

ITE (Commercial)

No Load Power Consumption :

300mW (Max)

Cord Length :

59 (1.50m)

Input Type :

Multi-Blade (Sold Separately)

Panel Cutout Dimensions :

Rectangular - 40.50mm x 21.70mm

Material Flammability Rating :

-

Voltage - Output :

12V

Power (Watts) :

20 W

Current Rating (Amps) :

-

Weight :

0.375 lb (170.1 g)

Package :

Bulk

Base Product Number :

741W-J

Current - Output (Max) :

1.67A

Connector Type :

Receptacle, Female Sockets

Size / Dimension :

2.82 L x 1.97 W x 1.22 H (71.7mm x 50.0mm x 31.0mm)

Panel Thickness :

0.039 ~ 0.078 (1.00mm ~ 2.00mm)

Voltage Rating :

-

Region Utilized :

International

Operating Temperature :

0°C ~ 40°C

Polarization :

Positive Center

Connector Style :

NBR 14136

Ingress Protection :

-

Input Connector :

Multi-Blade

Features :

-

Output Connector :

Barrel Plug R/A, 0.7mm I.D. x 2.5mm O.D. x 10.0mm

Product Status :

Obsolete

Mounting Type :

Panel Mount, Snap-In

Termination :

Quick Connect - 0.189 (4.8mm)

Voltage - Input :

90 ~ 264 VAC

Approval Agency :

CE, cULus
