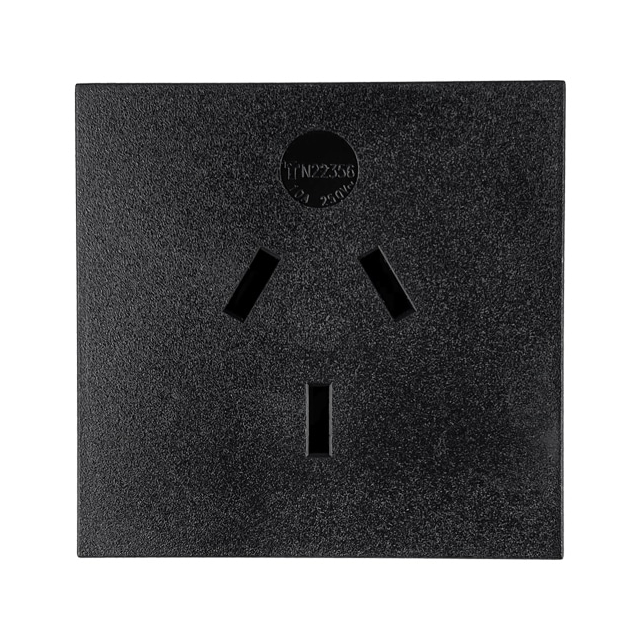

741W-E/02

Manufacturer :

Qualtek Electronics Corp.

Product Category :

Plugs and Receptacles

Base Product Number :

741W-E

Voltage Rating :

-

Current Rating (Amps) :

-

Mounting Type :

Panel Mount, Snap-In

Product Status :

Active

Number of Positions :

3

Size / Dimension :

0.250 L x 0.125 W (6.35mm x 3.18mm)

Material Flammability Rating :

-

Height - Seated (Max) :

0.030 (0.76mm)

Panel Cutout Dimensions :

Rectangular - 45.00mm x 42.00mm

Package / Case :

2512 (6432 Metric)

Tolerance :

±1%

Power (Watts) :

2W

Features :

High Voltage, Moisture Resistant, Pulse Withstanding

Failure Rate :

-

Operating Temperature :

-55°C ~ 150°C

Termination :

Screw

Ingress Protection :

-

Connector Style :

AS/NZ 3112

Temperature Coefficient :

±25ppm/°C

Package :

Tape and Reel (TR)

Connector Type :

Receptacle, Female Sockets

Number of Terminations :

2

Resistance :

2 MOhms

Panel Thickness :

0.138 (3.50mm)

Series :

HVC

Approval Agency :

SAA

Composition :

Thick Film

Supplier Device Package :

2512
