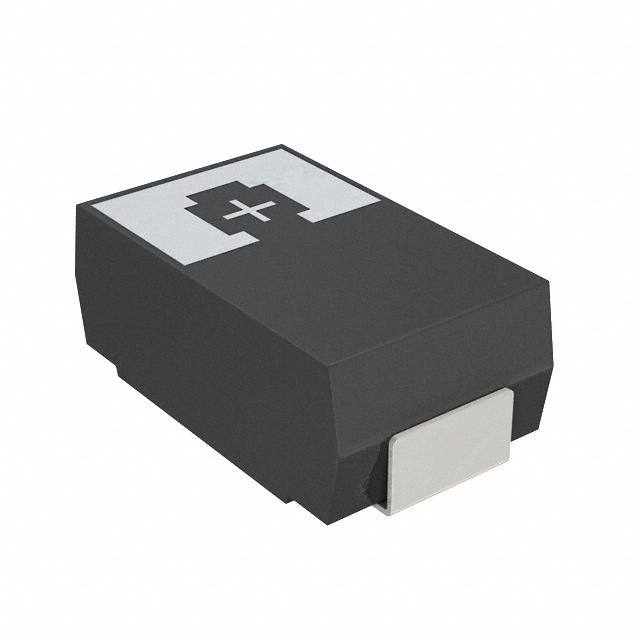

6TAB68M

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Ripple Current :

1100mA

RoHS Status :

ROHS3 Compliant

Capacitance :

68µF

Series :

POSCAP™ TA

Dielectric Material :

TANTALUM (SOLID POLYMER)

Leakage Current :

0.0428mA

Mounting Type :

Surface Mount

Voltage - Rated DC :

6.3V

REACH SVHC :

No SVHC

Packaging :

Tape and Reel (TR)

Width :

2.8mm

Number of Terminations :

2

Factory Lead Time :

14 Weeks

Package / Case :

1411 (3528 Metric)

Length :

3.5mm

Operating Temperature :

-55°C~105°C

Terminal Shape :

J BEND

Size / Dimension :

0.138Lx0.110W 3.50mmx2.80mm

Life (Hours) :

1000 hours

Lead Free :

Lead Free

Tolerance :

±20%

Packing Method :

TR, Embossed, 7 Inch

Additional Feature :

RIPPLE CURRENT MEASURED AT 100KHZ TO 500 KHZ

Lifetime @ Temp :

1000 Hrs @ 105°C

Case Code (Metric) :

3528

HTS Code :

8532.21.00.50

Polarity :

POLARIZED

Feature :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Manufacturer Size Code :

B2

ECCN Code :

EAR99

ESR (Equivalent Series Resistance) :

70mOhm @ 100kHz

Type :

Molded

Case Code (Imperial) :

1411

Height Seated (Max) :

0.083 2.10mm

Mount :

Surface Mount
