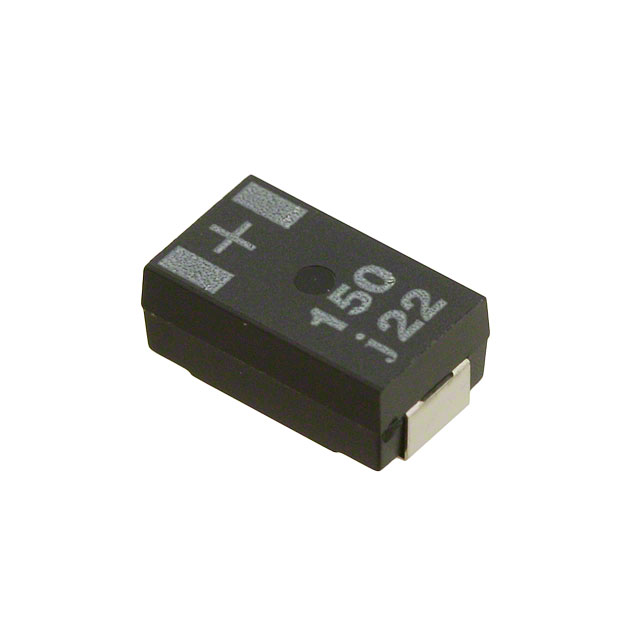

6SW150M

Manufacturer :

Rubycon

Product Category :

Aluminum - Polymer Capacitors

Rated (DC) Voltage (URdc) :

6V

Height :

2.9mm

ESR (Equivalent Series Resistance) :

9mOhm

Life (Hours) :

2000 hours

RoHS Status :

ROHS3 Compliant

Tan Delta :

0.1

Pbfree Code :

yes

Case Code (Metric) :

7343

Voltage - Rated DC :

6.3V

Ripple Current @ High Frequency :

3.5A @ 100kHz

Package / Case :

2917 (7343 Metric)

Surface Mount Land Size :

0.287Lx0.169W 7.30mmx4.30mm

ECCN Code :

EAR99

Mount :

Surface Mount

Number of Terminations :

2

Terminal Shape :

WRAPAROUND

Height Seated (Max) :

0.114 2.90mm

Packing Method :

TR

Length :

7.3mm

Lifetime @ Temp :

2000 Hrs @ 105°C

Type :

Polymer

Leakage Current :

0.036mA

Polarity :

POLARIZED

Operating Temperature :

-55°C~105°C

Series :

PC-CON, SW

Ripple Current :

3.5A

REACH SVHC :

No SVHC

Packaging :

Cut Tape (CT)

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Depth :

4.3mm

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Published :

2008

Ripple Current (AC) :

3.5A

Applications :

GENERAL PURPOSE

JESD-609 Code :

e4

Tolerance :

±20%

Case Code (Imperial) :

2917

Capacitance :

150µF

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Mounting Type :

Surface Mount

Radiation Hardening :

No
