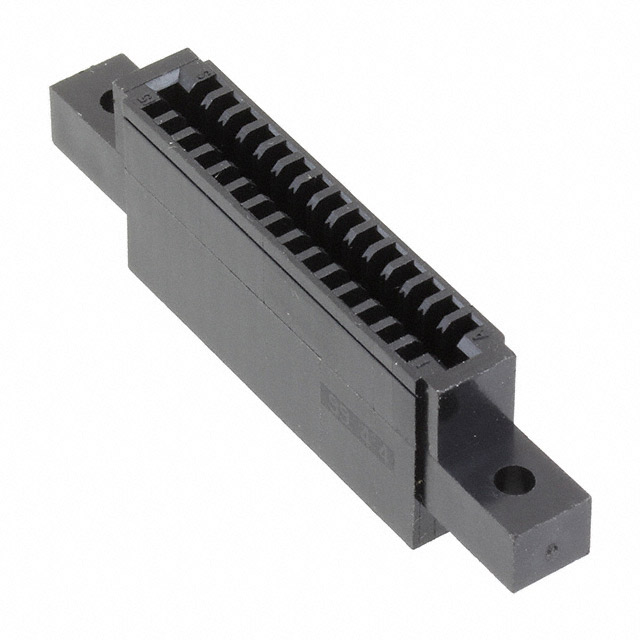

583718-3

Share

Or copy the link below:

Mfr.Part #
583718-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN CARDEDGE HSG 30POS .100 BLK
Stock
26,981
In Stock :
26,981

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Card Edge Connector Housings
Rated Current (Signal) :
5A
Contact Resistance :
10MOhm
Mating Retention :
Without
Total Number of Contacts :
30
Filter Feature :
No
Body Breadth :
0.35 inch
Current Rating :
5A
Note :
Contacts Not Included
ECCN Code :
EAR99
Material Flammability Rating :
UL94 V-0
Contact Finish - Mating :
NOT SPECIFIED
Feature :
Flange
Contact Gender :
FEMALE
Wire Gauge (Max) :
28 AWG
HTS Code :
8536.69.40.40
RoHS Status :
RoHS Compliant
Flange Feature :
Top Mount Opening, Unthreaded, 0.128 (3.25mm) Dia
Contact Pattern :
RECTANGULAR
UL Flammability Code :
94V-0
Housing Material :
Polyester
Factory Lead Time :
10 Weeks
Flammability Rating :
UL94 V-0
Pbfree Code :
yes
Depth :
19.05mm
Mount :
Cable, Panel
Wire Gauge (Min) :
16 AWG
Option :
GENERAL PURPOSE
Card Type :
Non Specified - Dual Edge
ELV :
Compliant
Reference Standard :
UL, CSA
Material - Insulation :
Polyester Thermoplastic, Glass Filled
Operating Temperature :
-40°C~85°C
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Series :
TWIN LEAF
Wire/Cable Gauge :
28 AWG
Card Thickness :
0.055 ~ 0.070 1.40mm ~ 1.78mm
Color :
Black
Withdrawl Force-Min :
.1946 N
Dielectric Withstanding Voltage :
1000VAC V
MIL Conformance :
No
Mounting Type :
Panel Mount
Orientation :
Straight
Length :
66.04mm
Connector Type :
CARD EDGE CONNECTOR
Insulation Resistance :
1000000000Ohm
Contact Material :
NOT SPECIFIED
Packaging :
Bulk
Mixed Contacts :
No
Number of Rows :
2
Published :
2004
DIN Conformance :
No
Pitch :
0.100 2.54mm
Number of Positions :
30
Reliability :
COMMERCIAL
Termination :
Crimp
Height :
19.05mm
IEC Conformance :
No
Contact Current Rating :
5A
Lead Free :
Not Applicable
Datasheets
583718-3
Introducing Card Edge Connector Housings TE Connectivity AMP Connectors 583718-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Panel Mount, 583718-3 pinout, 583718-3 datasheet PDF, 583718-3 amp .Beyond Card Edge Connector Housings TE Connectivity AMP Connectors 583718-3 ,we also offer 1703129-1, 583861-5, 1-583717-1, Our vast inventory has you covered. Contact us now for immediate solutions.
