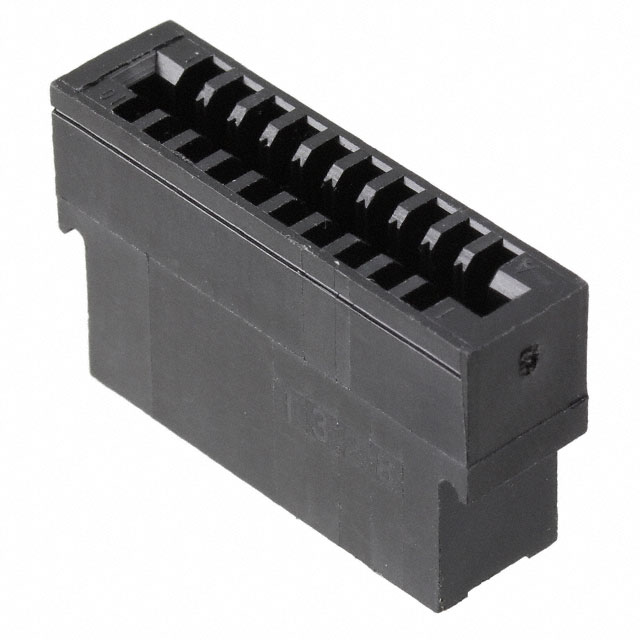

583717-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Card Edge Connector Housings

Contact Gender :

FEMALE

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time :

10 Weeks

RoHS Status :

RoHS Compliant

Current Rating :

5A

Material Flammability Rating :

UL94 V-0

Mating Retention :

Without

ELV :

Compliant

Contact Finish - Mating :

NOT SPECIFIED

Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

Contact Current Rating :

5A

Note :

Contacts Not Included

Filter Feature :

No

Material - Insulation :

Polyester Thermoplastic, Glass Filled

Housing Material :

Polyester

Number of Positions :

20

Card Thickness :

0.055 ~ 0.070 1.40mm ~ 1.78mm

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Connector Type :

PLUG

Contact Pattern :

RECTANGULAR

Withdrawl Force-Min :

.1946 N

Mixed Contacts :

No

Operating Temperature :

-40°C~85°C

UL Flammability Code :

94V-0

Number of Contacts :

10

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Crimp

Body Breadth :

0.35 inch

Reliability :

COMMERCIAL

Series :

TWIN LEAF

Rated Current (Signal) :

5A

Card Type :

Non Specified - Dual Edge

Mount :

Cable, Free Hanging

Lead Free :

Not Applicable

IEC Conformance :

No

Reference Standard :

UL, CSA

DIN Conformance :

No

Pbfree Code :

yes

Depth :

19.05mm

Number of Rows :

2

Color :

Black

Pitch :

0.100 2.54mm

Length :

33.02mm

MIL Conformance :

No

Height :

19.05mm

Published :

2004

Packaging :

Bulk

Contact Material :

NOT SPECIFIED

Option :

GENERAL PURPOSE
