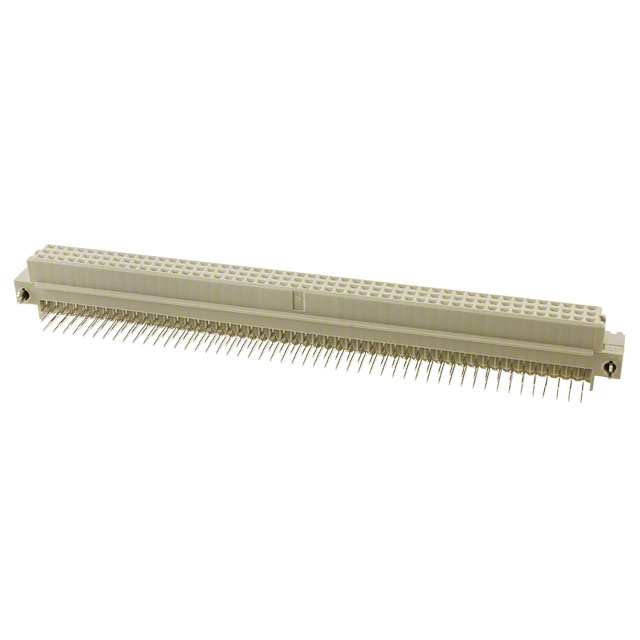

5650959-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

DIN 41612

Termination :

Solder

Feature :

Board Lock

Current Rating :

1.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Length :

2.79mm

Number of Positions Loaded :

All

Mount :

Through Hole

Length :

139.6mm

Lifecycle Status :

ACTIVE (Last Updated: 1 week ago)

Sealable :

No

Max Current Rating :

1.5A

Material Flammability Rating :

UL94 V-0

Make First / Break Last :

yes

Min Operating Temperature :

-55°C

Number of Positions :

150

Published :

1999

Orientation :

RIGHT ANGLE

Flammability Rating :

UL94 V-0

Factory Lead Time :

25 Weeks

Termination Post Length :

2.79mm

Pitch :

0.100 2.54mm

Housing Material :

Polymer

Style :

R

Contact Finish :

Gold

Max Operating Temperature :

125°C

Number of Contacts :

150

Contact Plating :

Tin, Gold

Level, Class :

2

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Color :

Grey

Series :

Eurocard

Circuit Application :

Signal

PCB Thickness :

1.5748mm

Operating Temperature :

-55°C~125°C

Height :

17.58mm

Depth :

17.58mm

Housing Color :

Grey

Number of Columns :

50

Row Spacing :

2.54 mm

Number of Signal Positions :

150

Max Voltage Rating (AC) :

250V

Mounting Type :

Through Hole, Right Angle

Material - Insulation :

Polymer Thermoplastic, Glass Filled

Number of Rows :

3

PCB Mounting Orientation :

RIGHT ANGLE

Length - Tail :

2.78892mm

ELV :

Compliant

Connector Type :

Receptacle, Female Sockets

Plating Thickness :

3 nm
