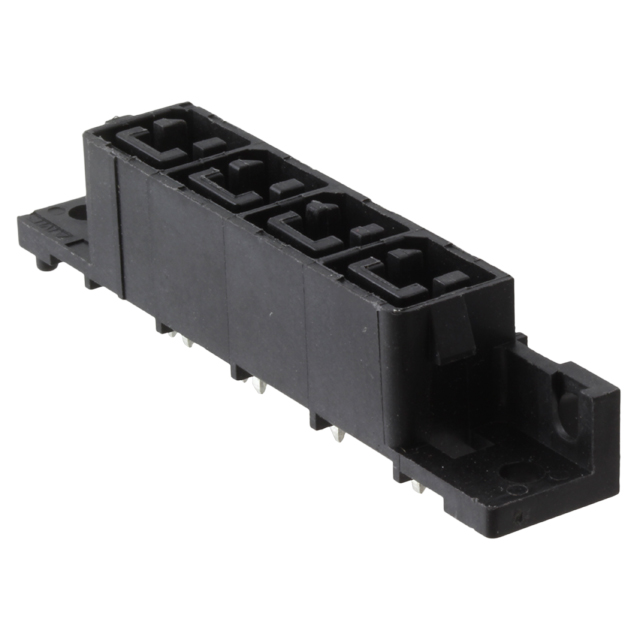

556881-4

Share

Or copy the link below:

Mfr.Part #
556881-4
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 4POS 11.18MM PCB SLDR
Stock
452
In Stock :
452

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Blade Type Power Connector Assemblies
Operating Supply Voltage :
600V
MIL Conformance :
No
Contact Material :
Copper
Feature :
Board Guide
Option :
GENERAL PURPOSE
Sealable :
No
Number of Terminations :
8
Filter Feature :
No
Operating Temperature :
0°C~105°C
Length :
69.088mm
Mount :
Through Hole
Circuit Application :
Power
PCB Thickness :
3.18mm
Wire/Cable Gauge :
20 AWG
Insulation Resistance :
5000000000Ohm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Depth :
14.43mm
Reliability :
COMMERCIAL
Color :
Black
Contact Current Rating :
35A
Number of Positions :
4
Lead Free :
Lead Free
Connector Type :
Receptacle, Female Blade Sockets
Pbfree Code :
yes
Total Number of Contacts :
4
Dielectric Withstanding Voltage :
2200VAC V
Empty Shell :
No
IEC Conformance :
No
Factory Lead Time :
8 Weeks
Packaging :
Bulk
Mounting Type :
Through Hole
Orientation :
Vertical
Flammability Rating :
UL94 V-0
Max Voltage Rating (AC) :
600V
Mixed Contacts :
No
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
ECCN Code :
EAR99
Material - Insulation :
Polyphthalamide (PPA)
Series :
AMPINNERGY
DIN Conformance :
No
Current Rating :
35A
RoHS Status :
RoHS Compliant
ELV :
Compliant
Contact Finish Thickness :
100.0μin 2.54μm
Pitch :
0.440 11.18mm
Gender :
Receptacle
Width :
19.304mm
Termination :
Solder
Height :
12.7mm
Housing Material :
Polyphenylene
Contact Finish :
Tin
Plating Thickness :
2.54μm
Contact Gender :
FEMALE
Number of Rows :
1
Fastening Type :
Locking Ramp
Number of Conductors :
ONE
Published :
2004
Approval Agency :
CSA
Datasheets
556881-4
Introducing Blade Type Power Connector Assemblies TE Connectivity AMP Connectors 556881-4 from Chip IC,where excellence meets affordability. This product stands out with its Number of Terminations:8, Operating Temperature:0°C~105°C, Mounting Type:Through Hole, 556881-4 pinout, 556881-4 datasheet PDF, 556881-4 amp .Beyond Blade Type Power Connector Assemblies TE Connectivity AMP Connectors 556881-4 ,we also offer 5787422-1, 1-1612962-3, 5787446-1, Our vast inventory has you covered. Contact us now for immediate solutions.
