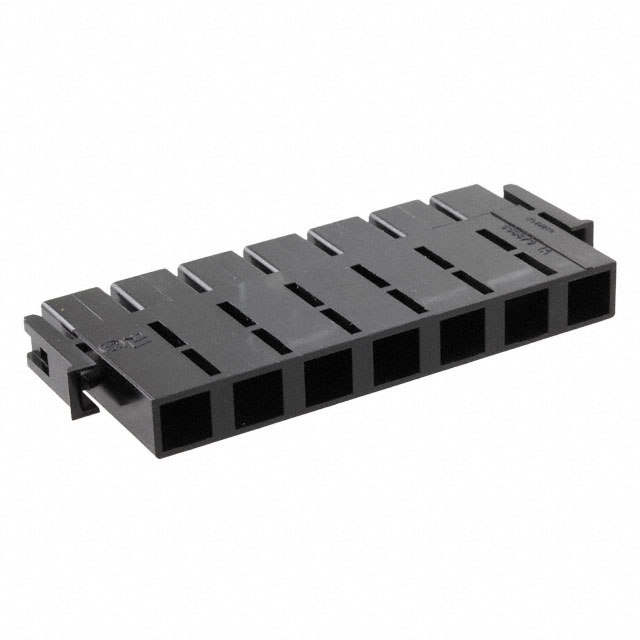

556879-7
Or copy the link below:
- Mfr.Part #
- 556879-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HSG PLUG 7POS 11.18MM BLACK
- Stock
- 160
- In Stock ：
- 160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Blade Type Power Connector Housings
- Voltage - Rated :
- 600V
- Published :
- 2004
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 1
- Lead Free :
- Lead Free
- Length :
- 76.2mm
- MIL Conformance :
- No
- Connector Type :
- PLUG
- Contact Current Rating :
- 35A
- Packaging :
- Bulk
- Pbfree Code :
- yes
- Orientation :
- Straight
- Mounting Type :
- Free Hanging (In-Line)
- Mixed Contacts :
- No
- Color :
- Black
- Width :
- 36.58mm
- Number of Conductors :
- ONE
- Mount :
- Free Hanging
- Flammability Rating :
- UL94 V-0
- Wire Gauge (Max) :
- 12 AWG
- Stacking Direction :
- Side to Side
- Operating Temperature :
- 0°C~105°C
- Pitch :
- 0.440 11.18mm
- Wire Gauge (Min) :
- 10 AWG
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Sealable :
- No
- Fastening Type :
- Latch Lock
- Factory Lead Time :
- 8 Weeks
- Contact Gender :
- Male
- ELV :
- Compliant
- Operating Supply Voltage :
- 600V
- Voltage - Rated DC :
- 600V
- Number of Positions :
- 7
- Circuit Application :
- Power
- Height :
- 9.398mm
- IEC Conformance :
- No
- Depth :
- 36.66mm
- Insulation Diameter :
- 25.908 mm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 35A
- Note :
- Contacts Not Included
- Reliability :
- COMMERCIAL
- Housing Material :
- Polycarbonate
- Dielectric Withstanding Voltage :
- 2200VAC V
- Total Number of Contacts :
- 7
- Max Voltage Rating (AC) :
- 600V
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Empty Shell :
- yes
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Series :
- AMPINNERGY
- Approval Agency :
- CSA
- DIN Conformance :
- No
- Wire/Cable Gauge :
- 10 AWG
- Contact Termination :
- Crimp
- Material - Insulation :
- Polycarbonate (PC)
- Contact Type :
- Non-Gendered
- Datasheets
- 556879-7
