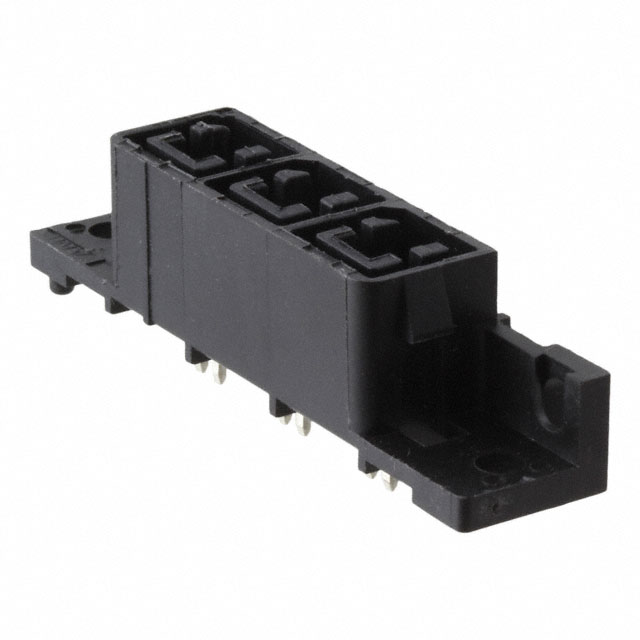

556881-3

Share

Or copy the link below:

Mfr.Part #
556881-3
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 3POS 11.18MM PCB SLDR
Stock
1,452
In Stock :
1,452

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Blade Type Power Connector Assemblies
Contact Current Rating :
35A
Lifecycle Status :
ACTIVE (Last Updated: 1 week ago)
Orientation :
Vertical
Number of Rows :
1
Insulation Resistance :
5000000000Ohm
Sealable :
No
Published :
2004
Contact Gender :
FEMALE
Pitch :
0.440 11.18mm
Flammability Rating :
UL94 V-0
Filter Feature :
No
Connector Type :
Receptacle, Female Blade Sockets
Lead Free :
Lead Free
Factory Lead Time :
18 Weeks
Series :
AMPINNERGY
Fastening Type :
Locking Ramp
UL Flammability Code :
94V-0
Length :
57.912mm
Withdrawl Force-Min :
4.448 N
Depth :
12.73mm
Height :
12.7mm
Option :
GENERAL PURPOSE
Mixed Contacts :
No
PCB Thickness :
3.18mm
Reliability :
COMMERCIAL
Termination :
Solder
Empty Shell :
No
RoHS Status :
RoHS Compliant
Max Voltage Rating (AC) :
600V
Packaging :
Bulk
Wire/Cable Gauge :
20 AWG
Plating Thickness :
2.54μm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Approval Agency :
CSA
Contact Finish :
Tin
Width :
19.304mm
Circuit Application :
Power
Color :
Black
Mount :
Through Hole
MIL Conformance :
No
ECCN Code :
EAR99
Pbfree Code :
yes
Material - Insulation :
Polyphthalamide (PPA)
Operating Supply Voltage :
600V
Contact Finish Thickness :
100.0μin 2.54μm
Total Number of Contacts :
3
Number of Conductors :
ONE
Dielectric Withstanding Voltage :
2200VAC V
Operating Temperature :
0°C~105°C
Number of Positions :
3
Insertion Force-Max :
26.688 N
Gender :
Receptacle
Current Rating :
35A
Feature :
Board Guide
Housing Material :
Polyphenylene
DIN Conformance :
No
IEC Conformance :
No
Contact Material :
Copper
Mounting Type :
Through Hole
Datasheets
556881-3
Introducing Blade Type Power Connector Assemblies TE Connectivity AMP Connectors 556881-3 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:0°C~105°C, Mounting Type:Through Hole, 556881-3 pinout, 556881-3 datasheet PDF, 556881-3 amp .Beyond Blade Type Power Connector Assemblies TE Connectivity AMP Connectors 556881-3 ,we also offer 5787422-1, 1-1612962-3, 5787446-1, Our vast inventory has you covered. Contact us now for immediate solutions.
