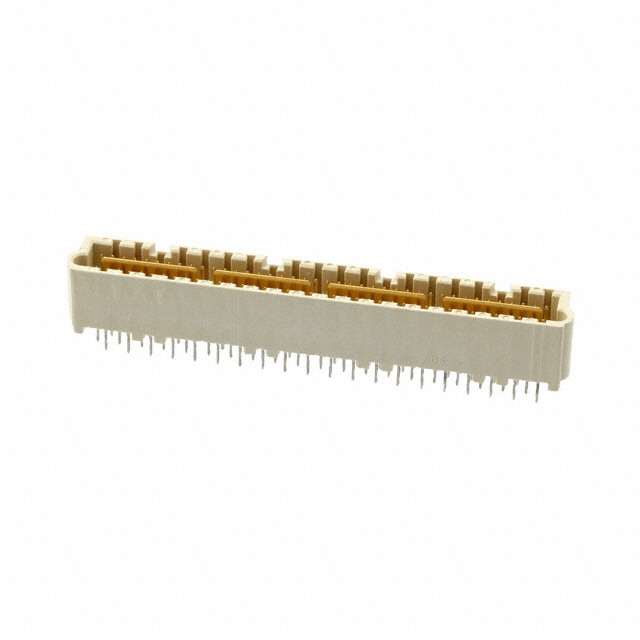

536280-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Preloaded :

yes

DIN Conformance :

No

Reliability :

COMMERCIAL

Length - Tail :

2.41mm

Number of Conductors :

ONE

Total Number of Contacts :

80

Pitch :

1.27mm

Housing Material :

Thermoplastic

Mixed Contacts :

No

PCB Contact Pattern :

STAGGERED

Number of Pins :

80

Height :

8.636mm

Additional Feature :

HIGH DENSITY, POLARZED

Contact Gender :

Male

Durability :

50 Cycles

Min Operating Temperature :

-65°C

Stack Height :

10.92mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS Status :

Non-RoHS Compliant

Option :

GENERAL PURPOSE

Contact Style :

SQ PIN-SKT

HTS Code :

8536.69.40.40

Row Spacing - Mating :

2.54 mm

Orientation :

Straight

Plating Thickness :

30μin

Connector Type :

Pin, Plug

Insulation Resistance :

5000000000Ohm

PCB Mounting Orientation :

Vertical

Filter Feature :

No

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e0

Termination :

Solder

Number Of PCB Rows :

5

Length :

56.24mm

Housing Color :

Natural

Dielectric Withstanding Voltage :

500VAC V

Mount :

Through Hole

Max Operating Temperature :

125°C

ELV :

Compliant

Contact Plating :

Gold

ECCN Code :

EAR99

Number of Rows :

2

IEC Conformance :

No

Contact Material :

Bronze

Depth :

7.24mm
